Generative AI for hydrodynamical simulations:

2D, 3D, or 6D galaxy models?

SKA research at
Zurich University of Applied Sciences (ZHAW)

Centre for Artificial Intelligence (CAI)
Institute for Business Information Technology (IWI)
June 10, 2024
contact_qr.png Philipp Denzel, Frank-Peter Schilling, Elena Gavagnin

Slides on my website

https://phdenzel.github.io/


Outlook

Recap:
Generative models
for map-to-map translation

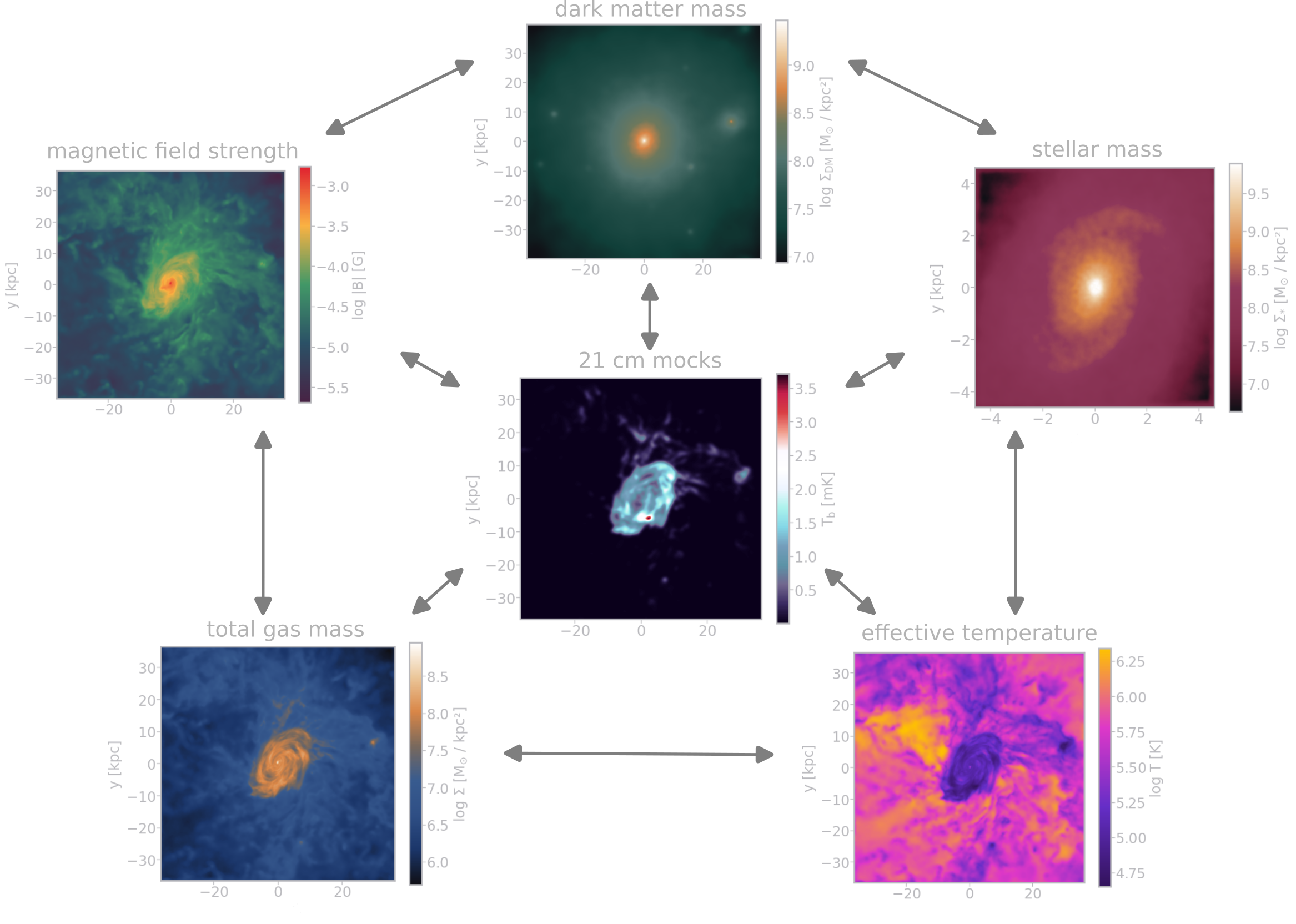

Dataset from IllustrisTNG

  • projected IllustrisTNG galaxies
  • 6 domains:
    • dark-matter, stars, gas,
      HI, temperature, magnetic field
  • ∼ 2'000 galaxies, (across 6 snapshots)
  • ∼ 360'000 images
  • each galaxy \(\ge\) 10'000 particles
  • augmented: up to 5x randomly rotated
  • scale: 2 dark-matter half-mass radii


Dataset from IllustrisTNG

  • projected IllustrisTNG galaxies
  • 6 domains:
    • dark-matter, stars, gas,
      HI, temperature, magnetic field
  • ∼ 2'000 galaxies, (across 6 snapshots)
  • ∼ 360'000 images
  • each galaxy \(\ge\) 10'000 particles
  • augmented: up to 5x randomly rotated
  • scale: 2 dark-matter half-mass radii


Generative model architectures


Benchmark of generative models we're investigating and comparing:

cGANs

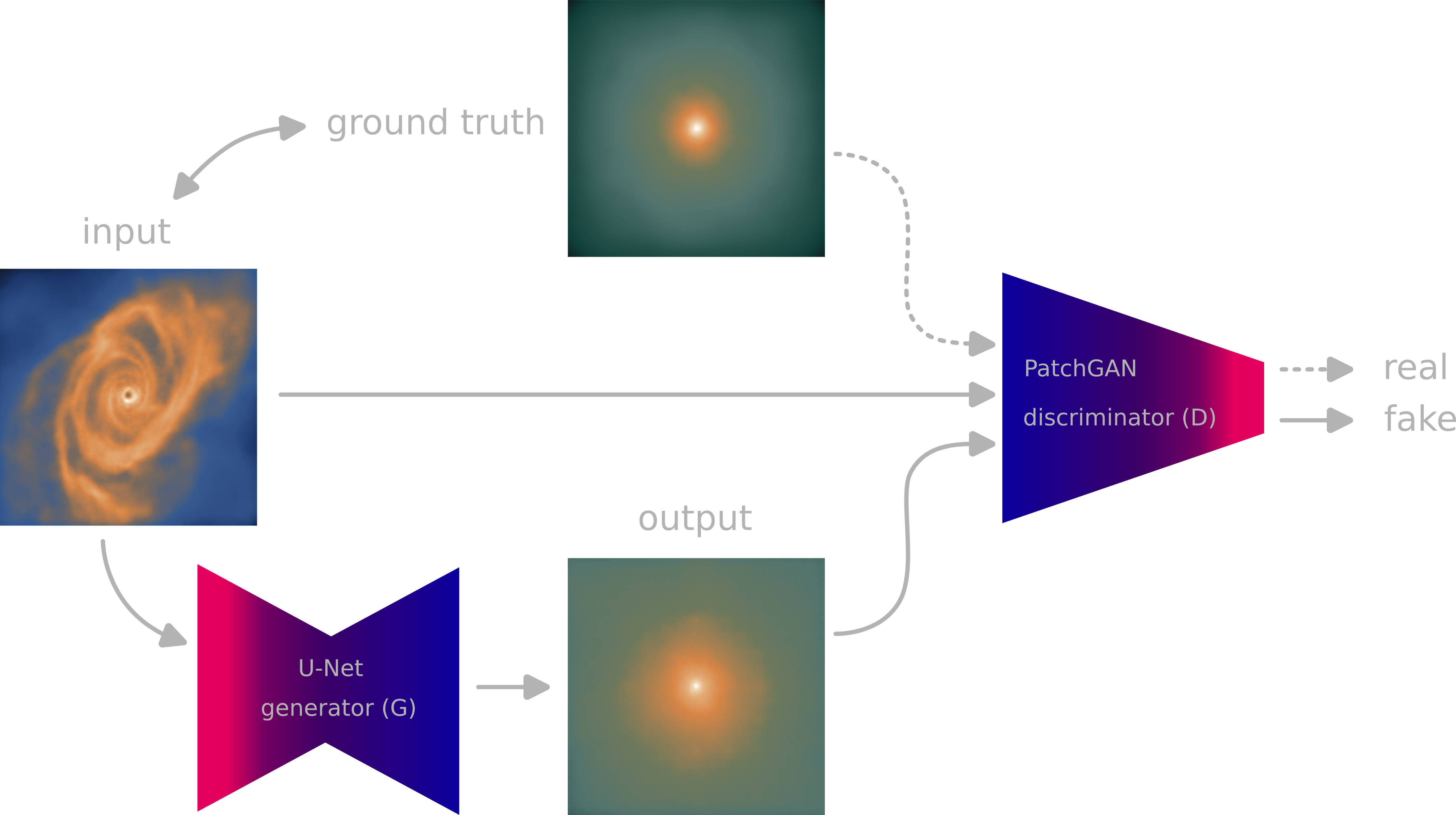

Figure 1: pix2pix scheme

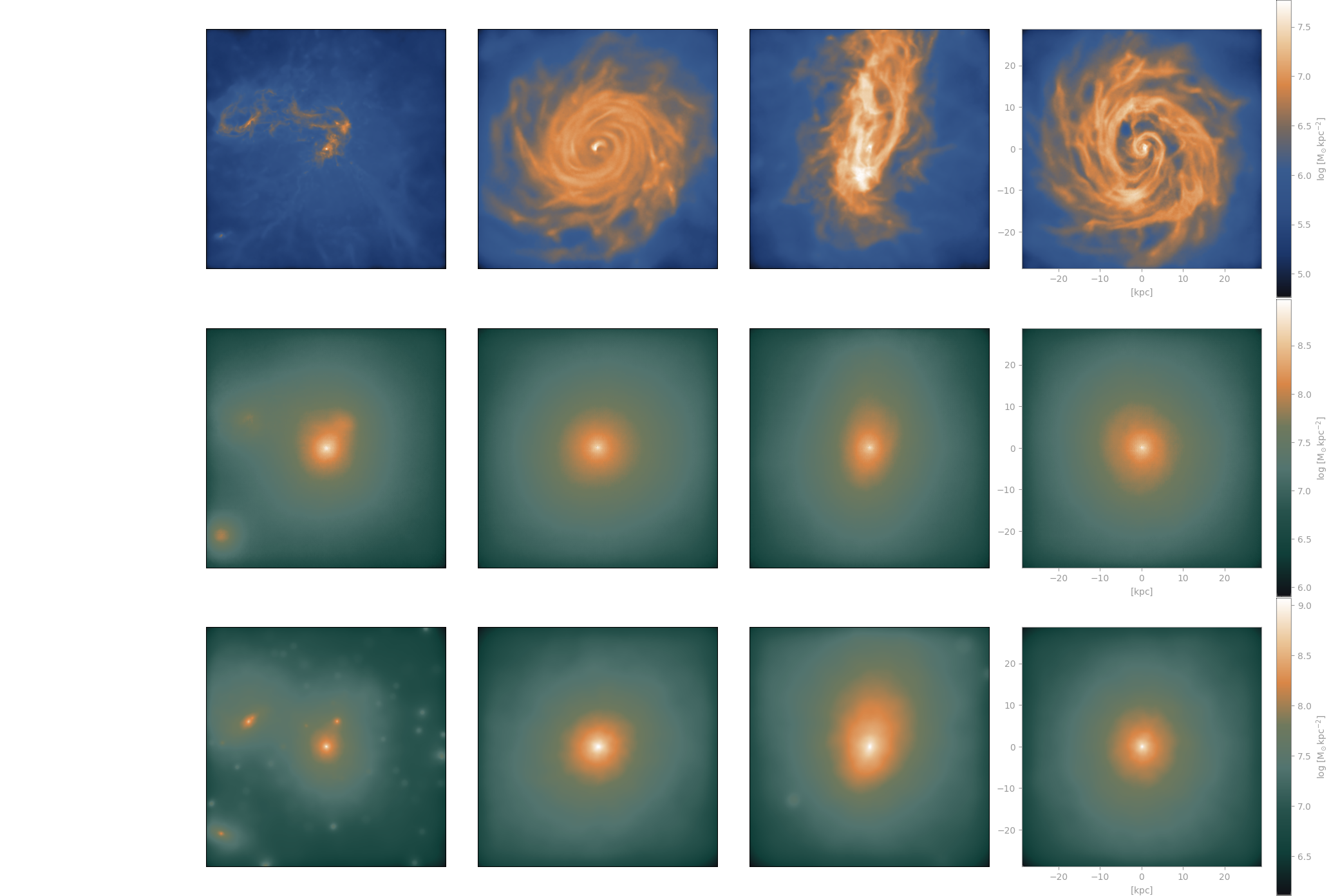

Figure 2: cGAN(Gas) → DM: data, prediction, and ground truth (from top to bottom)

Score-based diffusion (SDM)

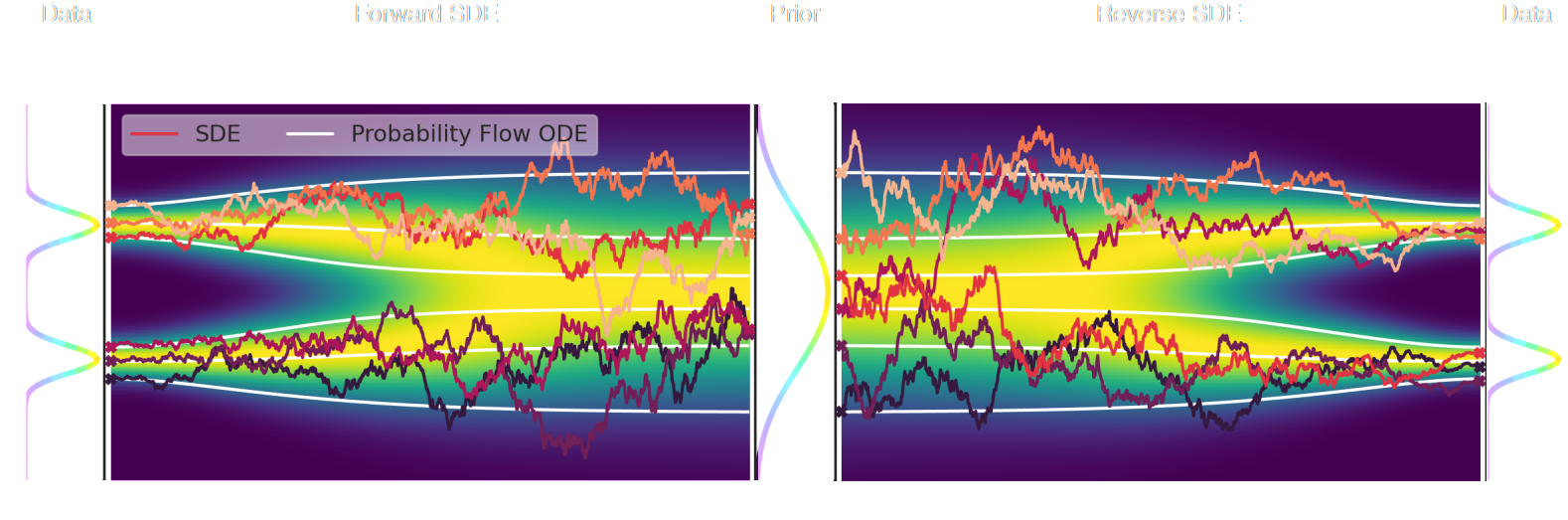

Figure 3: Score-based diffusion: Song et al. (2021)

Noise schedule

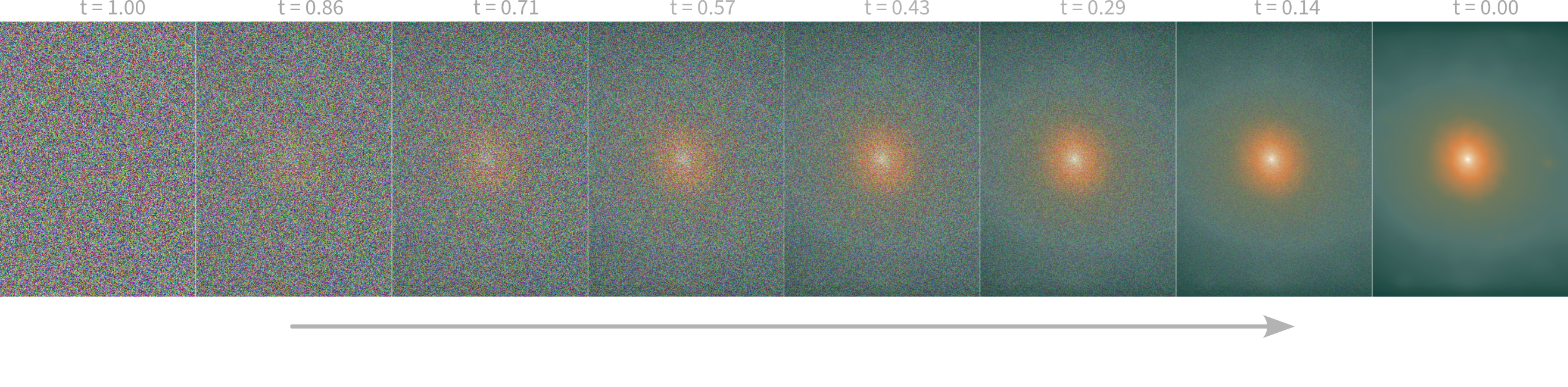

Inversion by Direct Iteration (InDI)


Figure 4: InDI's iteration scheme following Delbracio & Milanfar (2023)

Diffusion Mamba (DiM)


Figure 5: DiM architecture Teng et al. (2024)

From 2D to 3D models

  • observations inherently have 2D spatial resolution
  • astrophysical structures are inherently 3D
  • modelling difficulties:
    • inherent 3D features, different 2D perspectives
    • degeneracies
    • computational costs, …

Inherent 3D shapes

APOD 2019 June 29: M83

APOD 2024 June 6: NGC 4565

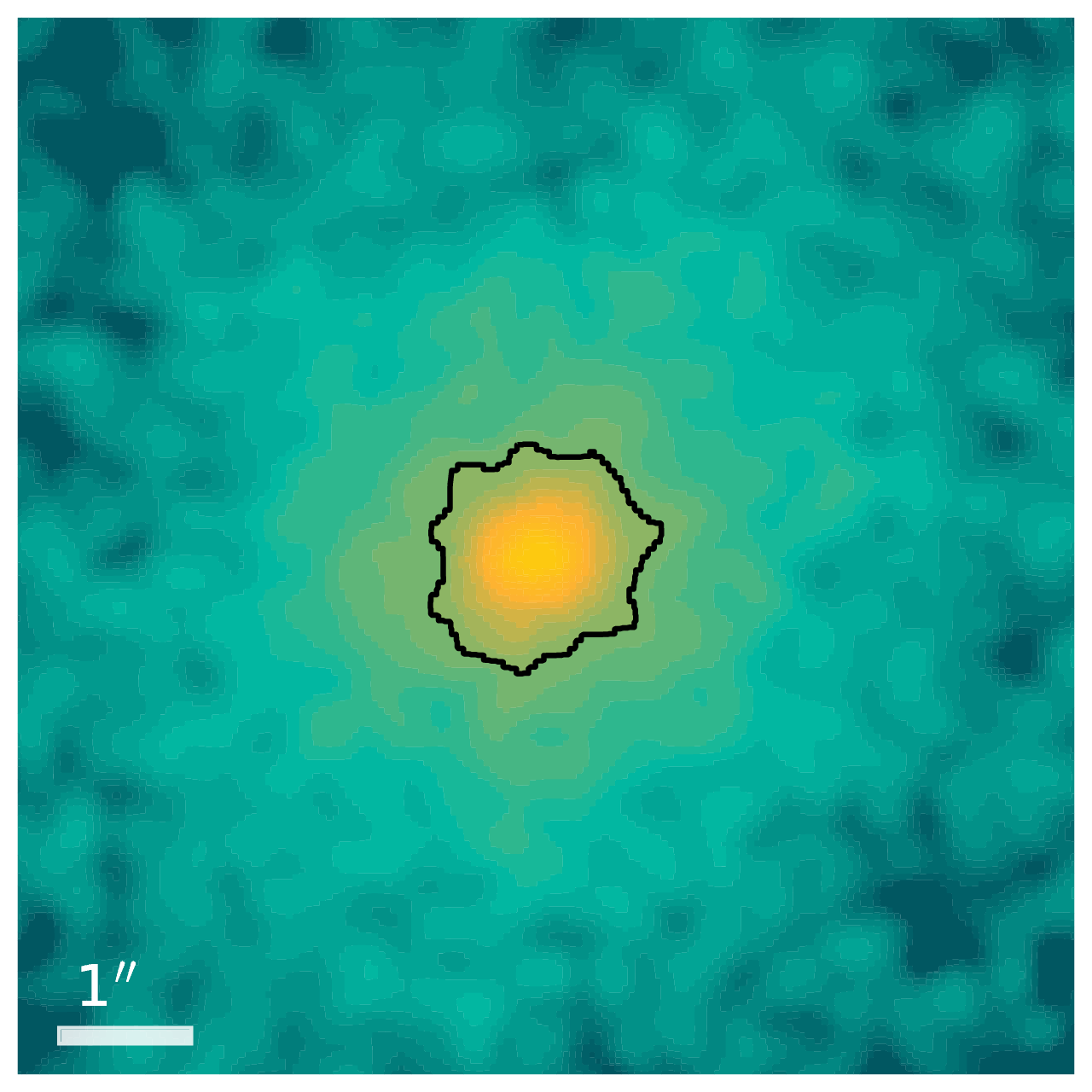

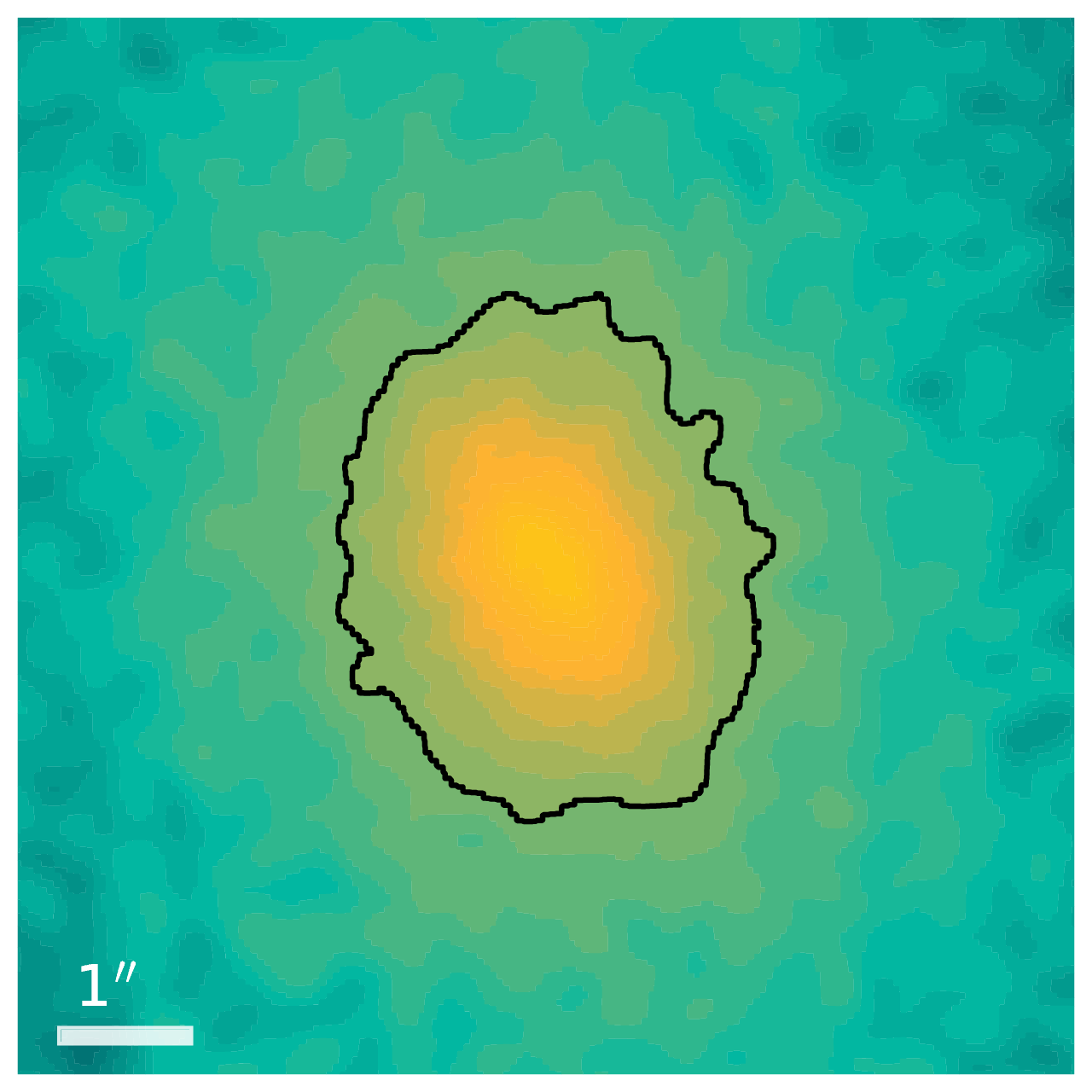

Degeneracies


original image



reconstruction



⟶



⟶


All valid model solutions: Denzel et al. (2021)

Point-cloud models for 3D modelling


Data type: point cloud

x y z [Mass] [E]
4 8 1 - -
5 1 6 -
2 3 4 2 -
3 4 3 5 -
5 9 1 3 -
9 6 9 4 -
… … … … -

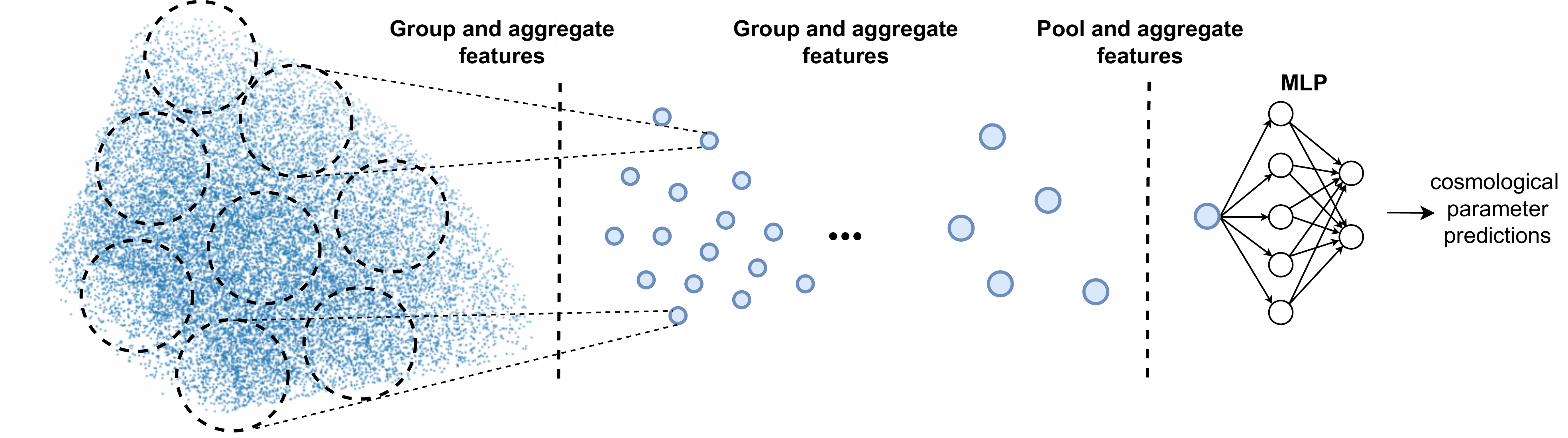

For Cosmological Inference

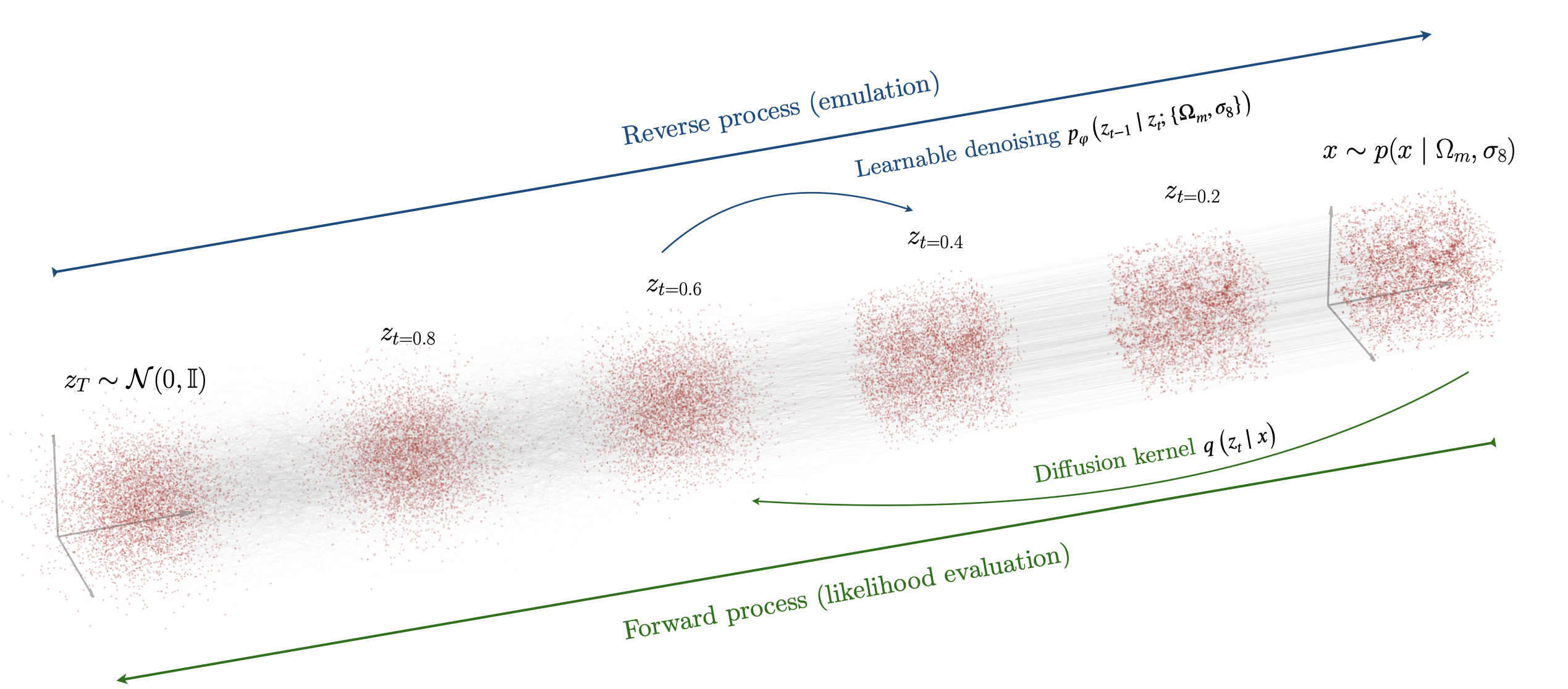

For Emulation of DM simulations (Quijote)

Experiments using transformers

  • AdaPoinTr architecture
  • Task: point cloud "completion"
  • Limitations:
    • input: max. ~10'000 particles
    • output: max. ~16'000 particles
      ⟶ Iterative generation
      ⟶ subsampling input
  • by Master student: Raphael Emberger

The "Good"

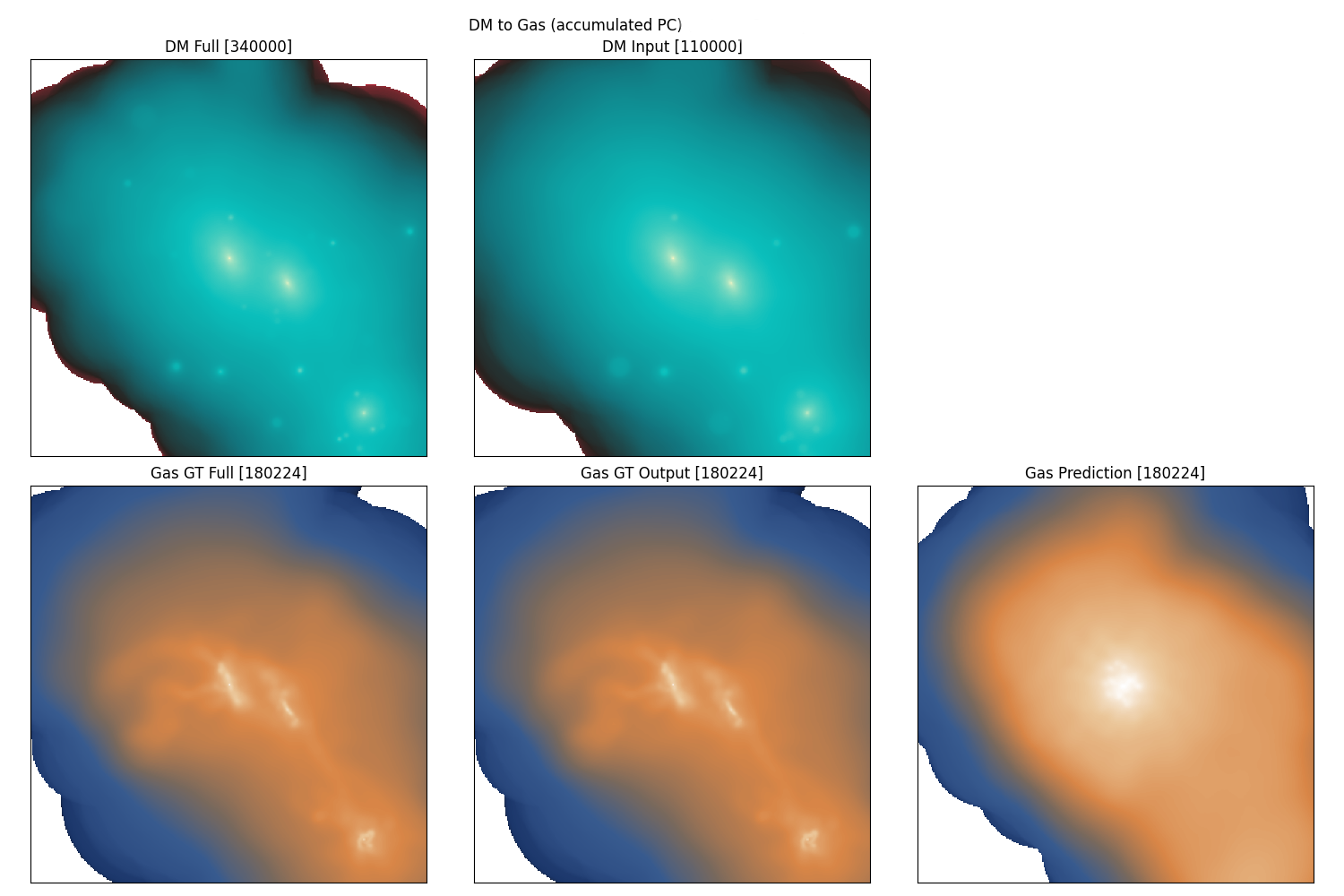

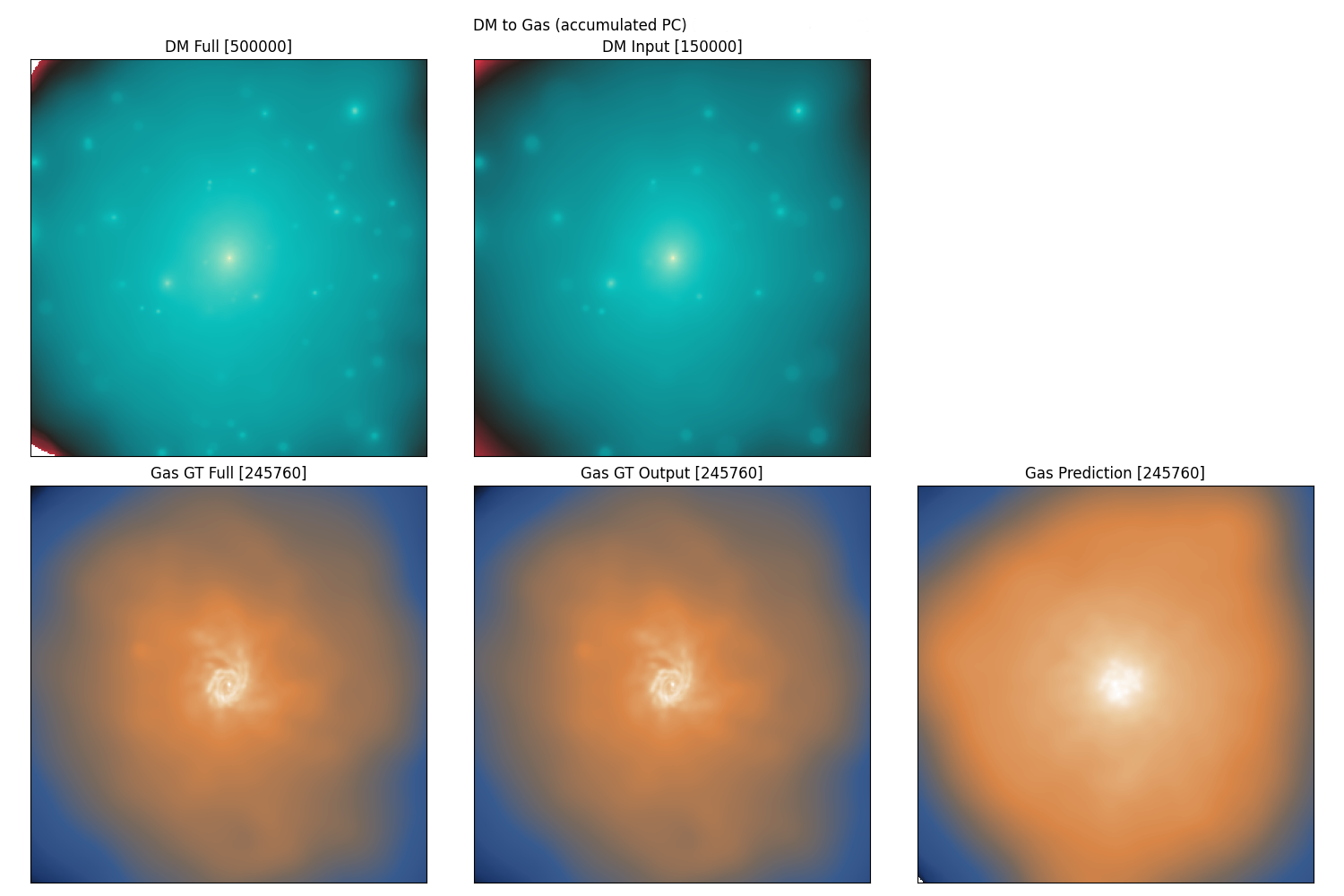

Figure 8: AdaPoinTr (Yu et al. 2023) on TNG50 galaxies: DM → gas

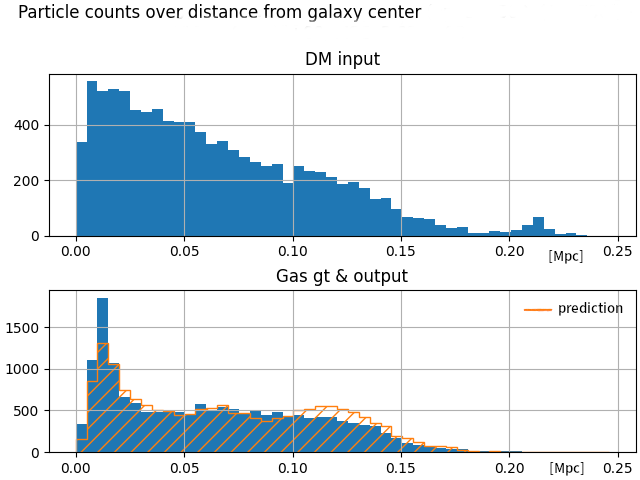

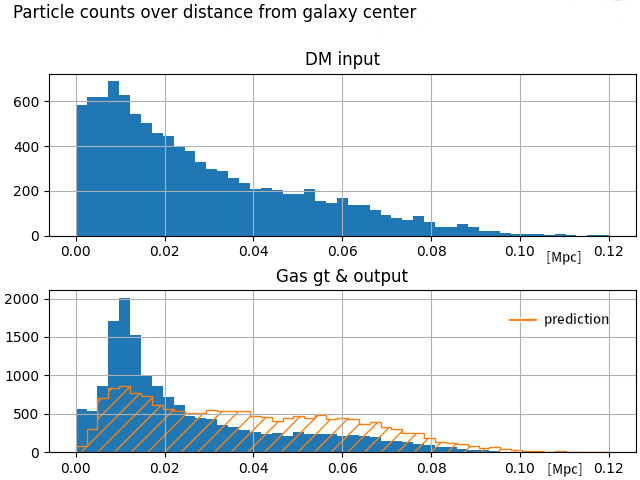

Figure 9: Radial profiles of particle numbers

The "Bad"

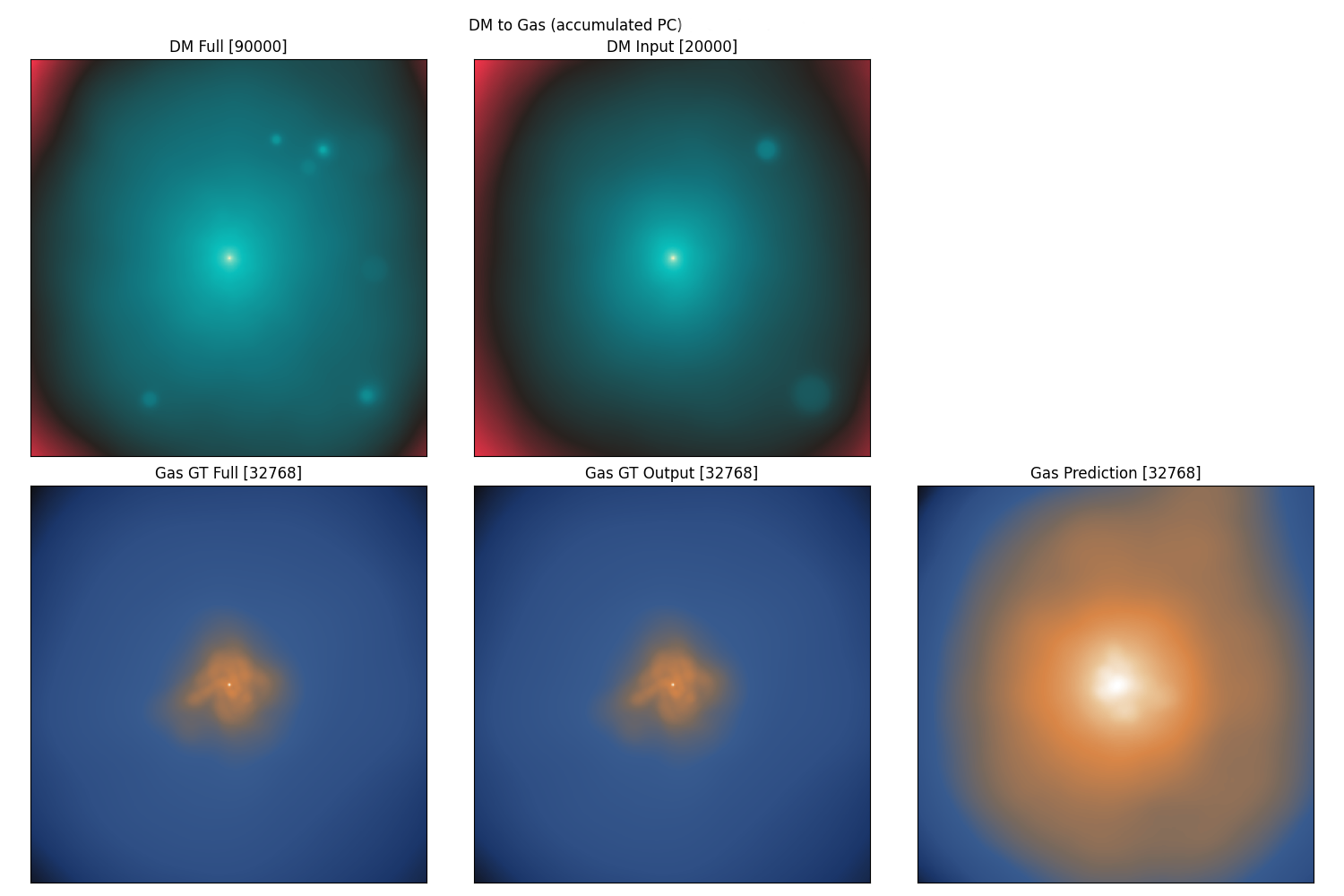

Figure 10: AdaPoinTr (Yu et al. 2023) on TNG50 galaxies: DM → gas

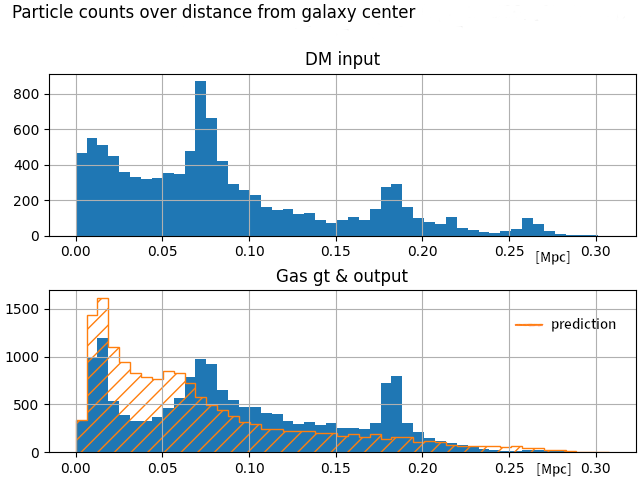

Figure 11: Radial profiles of particle numbers

The "Ugly"


Figure 12: AdaPoinTr (Yu et al. 2023) on TNG50 galaxies: DM → gas


Figure 13: Radial profiles of particle numbers

Towards "Phase-space-point" models

  • expand feature vector to: mass, momenta/velocities, potential, …
  • problems:
    • already barely computationally tractable

    • more particles needed for accuracy

      ⟶ optimization: quantization, pruning, data parallelism, sharding, …
      ⟶ better subsampling strategies
      ⟶ self-consistency checks? regularizations?

Contact

https://phdenzel.github.io/




Email: philipp.denzel@zhaw.ch
