Explaining (with) AI:

the Universe and other stuff

2023/12/06 Wed
by

Philipp Denzel contact_qr.png

Slides on my website

https://phdenzel.github.io/

talk_qr.svg

Link/QR code to the slides for later or to follow along

Projects at CAI

  • SKA project (funding: SERI/SKACH, collab: IVS & IWI):
    • Square Kilometer Array observatory & SKACH
    • generative modelling of sky simulations ("mocks")
    • my interests:
      • generative deep learning,
      • galactic evolution, dark matter…


Figure 1: ZHAW's SKACH team at CSCS in Lugano

Projects at CAI

  • certAInty project (funding: Innosuisse, collab: RAI/IVS, IAMP & certX):
    • Certification scheme for AI systems
    • transparency of AI systems, regulations for AI systems
    • my interests:
      • XAI (in medicine), expanding my toolbox,
      • the "politics" of AI…


Outlook

How to build a universe

  • Cosmology: study of the observable Universe's
    • origins and evolution
    • large-scale structure
    • physical laws

How to build a universe

  • Astrophysics: ascertain the nature and dynamics of celestial bodies
    • galactic dynamics (most common light sources in the sky)
    • baryonic matter (stuff that interacts with light)
    • radiation (aka light)
    • dark matter (stuff that doesn't interact with light)

Unique scientific disciplines

  • problem with the scientific method
    1. phenomenon ⟶ question
    2. theory/hypothesis ⟶ predictions
    3. test in experiment?
    4. analysis ⟶ conclusion
      • publish & retest
  • computational simulations replace experiments
    • simulate the Universe…
    • what are the initial conditions?

Astronomical scales

Sun light

Alpha Centauri

Young galaxies

Cosmic epochs

The Cosmic Microwave Background


Figure 2: 2006, Credit: ESA/Planck

The Cosmic Microwave Background

The Big Bang

  • expansion of the Universe from an initial state (not from a singularity!)
    • at 10-43 sec: Planck epoch (high density/energy state), size ~ 10-35 m
    • at 10-37 sec: the gravitational force decouples, the Universe expands
      • Inflation: exponential expansion and cooling
    • at 10-32 sec: quark-gluon plasma, size ~ 1043 m
      • symmetry-breaking phase transitions cause other forces to separate
    • at 10-6 sec: baryons form, expansion and cooling continues
    • at 379'000 years: Universe becomes opaque ⟶ CMB

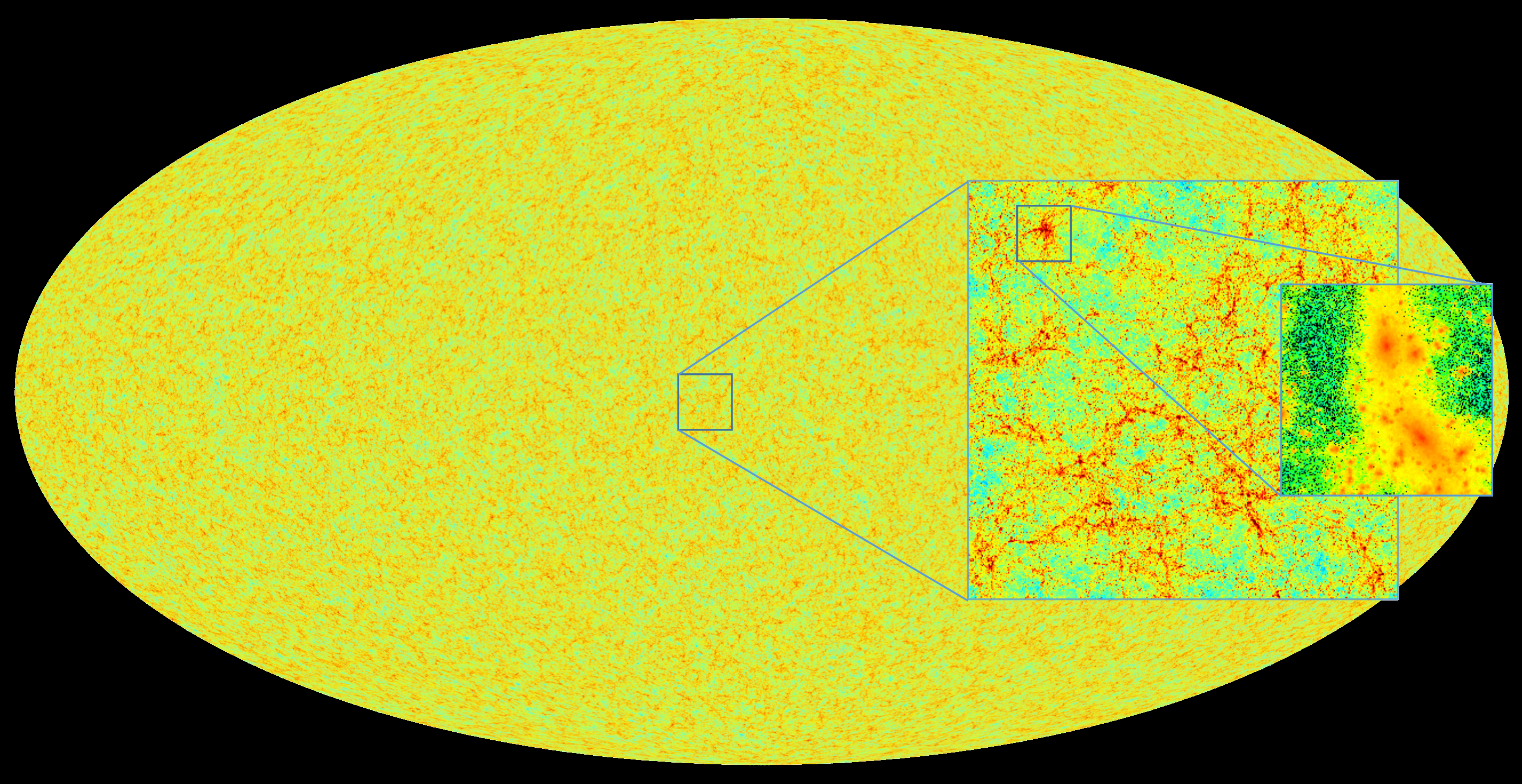

Mollweide projection


Figure 3: 2006, Credit: NASA

CMB anisotropies


Figure 4: 2006, Credit: ESA/Planck

Flagship cosmological particle simulations


Figure 5: 2016, Credit: D. Potter, J. Stadel, R. Teyssier

Cosmological simulations using hydrodynamics

Fluids

\begin{align} \frac{\partial \rho}{\partial t} &+ \nabla\cdot (\rho\textbf{v})= 0 \label{eq:EulerMass} \\ \frac{\partial (\rho\textbf{v})}{\partial t} &+ \nabla\cdot (\rho(\textbf{v} \otimes \textbf{v}) + \mathbb{P}) = \rho \textbf{a} \label{eq:EulerMomentum}\\ \frac{\partial E}{\partial t} &+ \nabla \cdot (E + \mathbb{P}) \textbf{v} = \rho \textbf{a} \textbf{v} \label{eq:EulerEnergy} \end{align}

Radiation

\begin{align} \frac{1}{c}\frac{\partial I_{\nu}}{\partial t} + \hat{\textbf{n}}\cdot\nabla I_{\nu} &= j_{\nu} - \alpha_{\nu}I_{\nu} \label{eq:Radiative_transfer} \\ \frac{1}{c^{2}}\frac{\partial\textbf{F}_{\nu}}{\partial t} \,+\, \nabla\cdot\mathbb{P}_{\nu} &= - \frac{\alpha_{\nu}\textbf{F}_{\nu}}{c} \label{eq:Radiative_flux_moment} \\ \frac{\partial E_{\nu}}{\partial t} \,+\, \nabla\cdot\textbf{F}_{\nu} &= 4\pi j_{\nu}\,-\, \alpha_{\nu}cE_{\nu} \label{eq:Radiative_energy_moment} \end{align}

SPH simulations: "zoom-ins"

B-field (TNG100), Credit: IllustrisTNG

SPH simulations: isolated galaxies

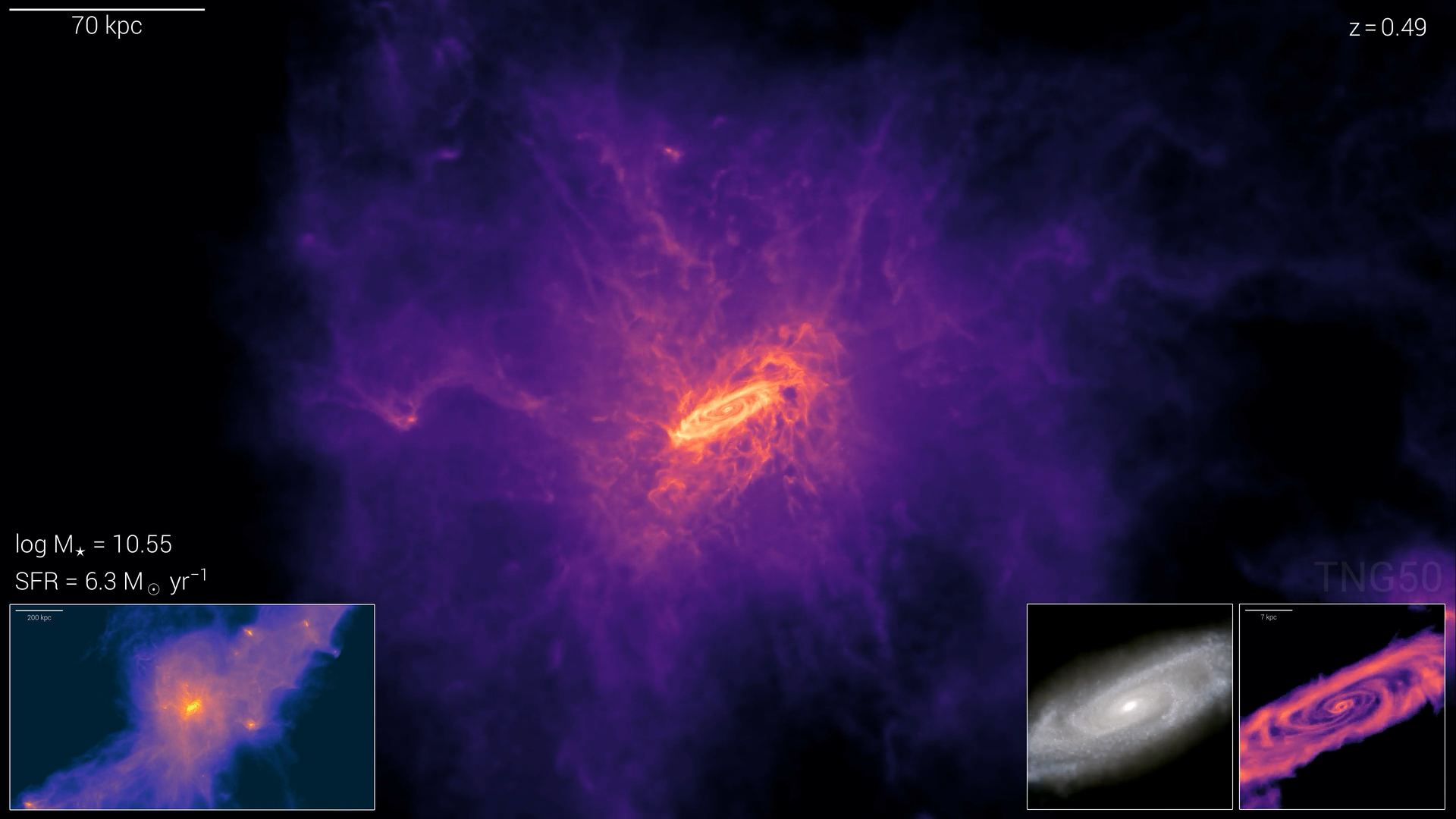

g1 (TNG50), Credit: IllustrisTNGs

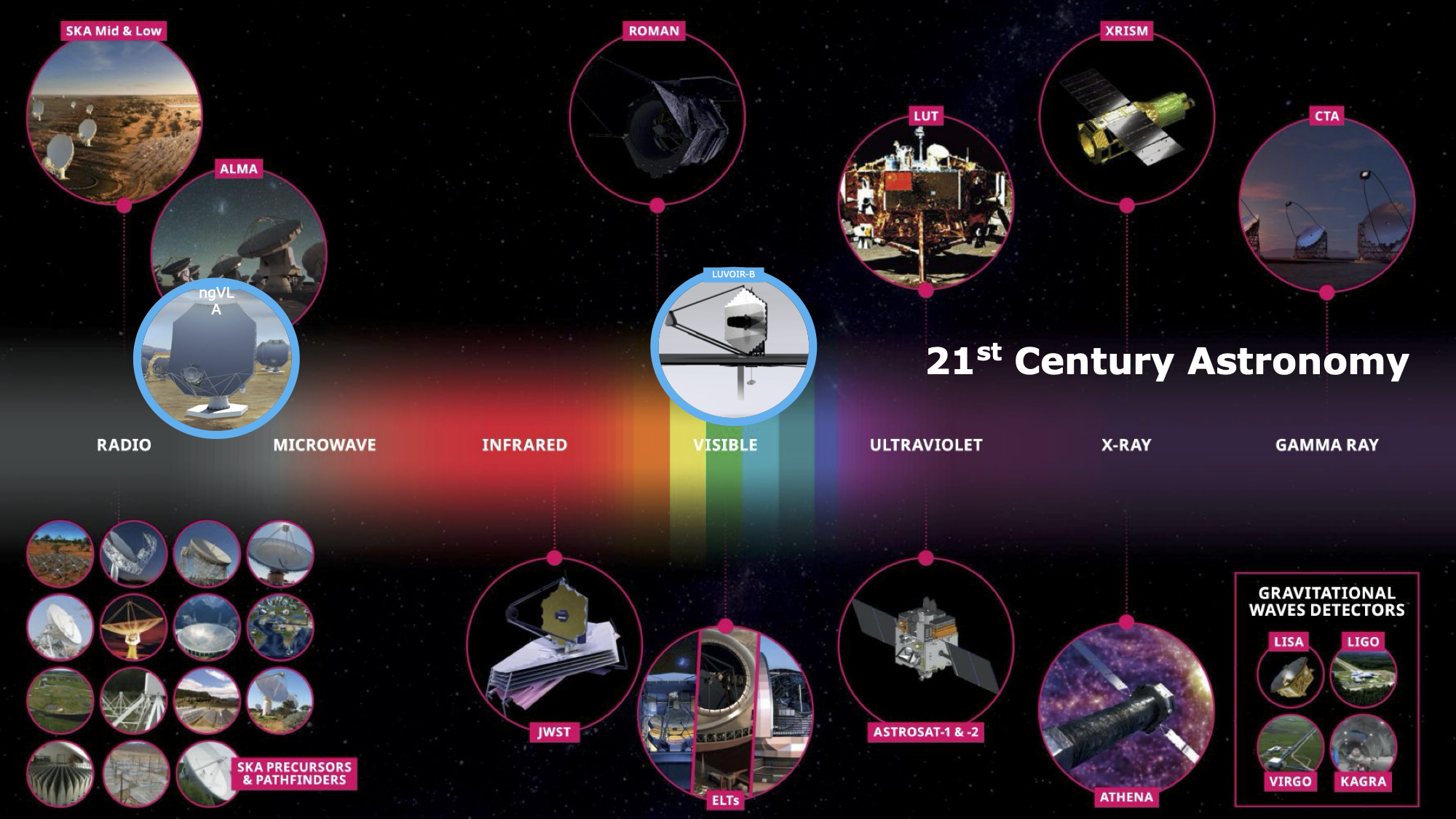

Theory ↔ Simulations ↔ Observations


Figure 6: 2023, Credit: SKAO

Radio telescopes





\begin{equation} V_{pq} = \int_{4\pi} g_{p}(r)\ B(r)\ g^{\ast}_{q}(r) e^{-\frac{2\pi}{\lambda}\langle\vec{p}-\vec{q}, \vec{r}\rangle} \text{d}\Omega \end{equation}








The Square Kilometer Array

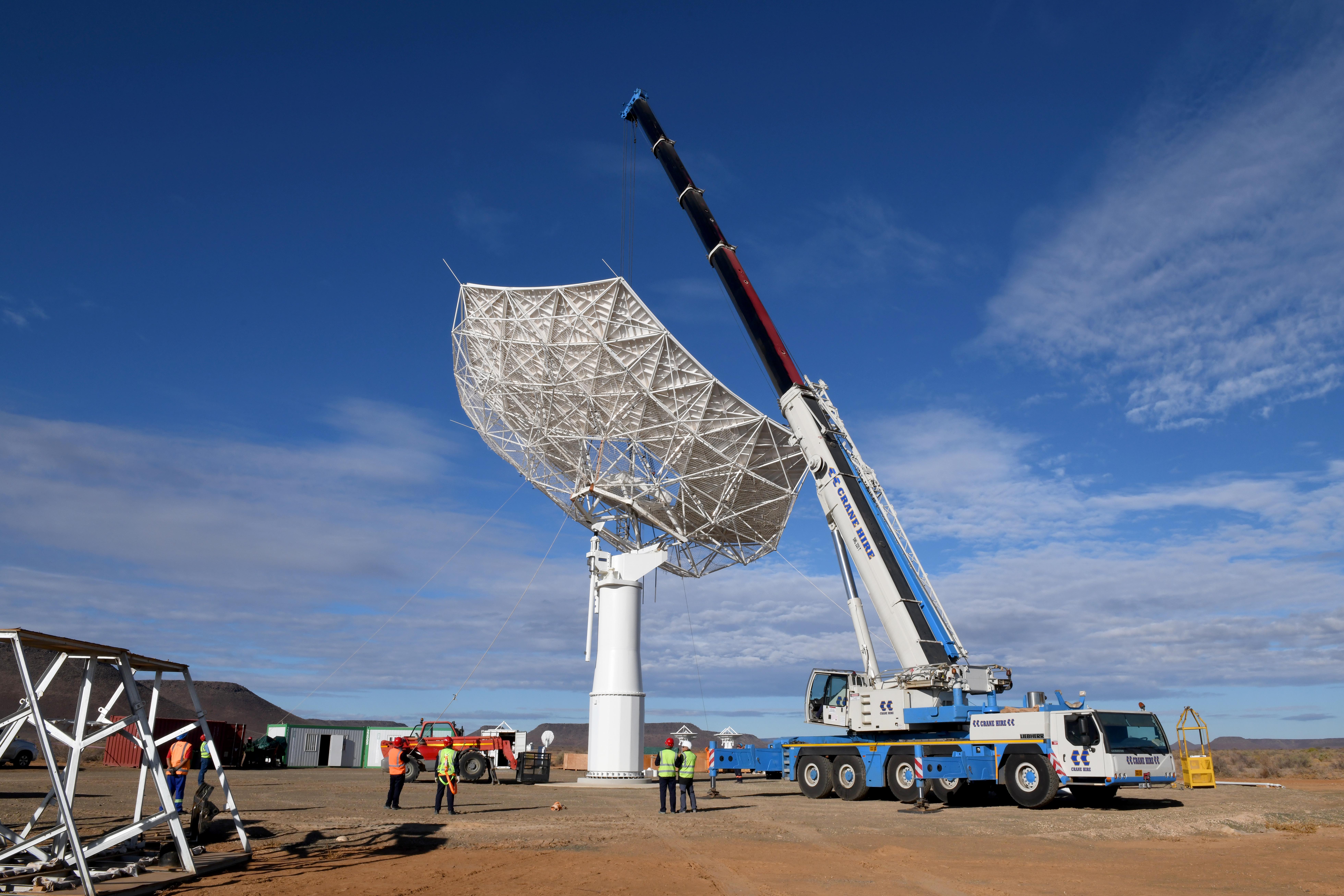

Under construction


Figure 7: 2023, Credit: SKAO

Some numbers

on Proxima Centauri b

exascale supercomputers

over 7 Pbps

storing 750 PB/yr

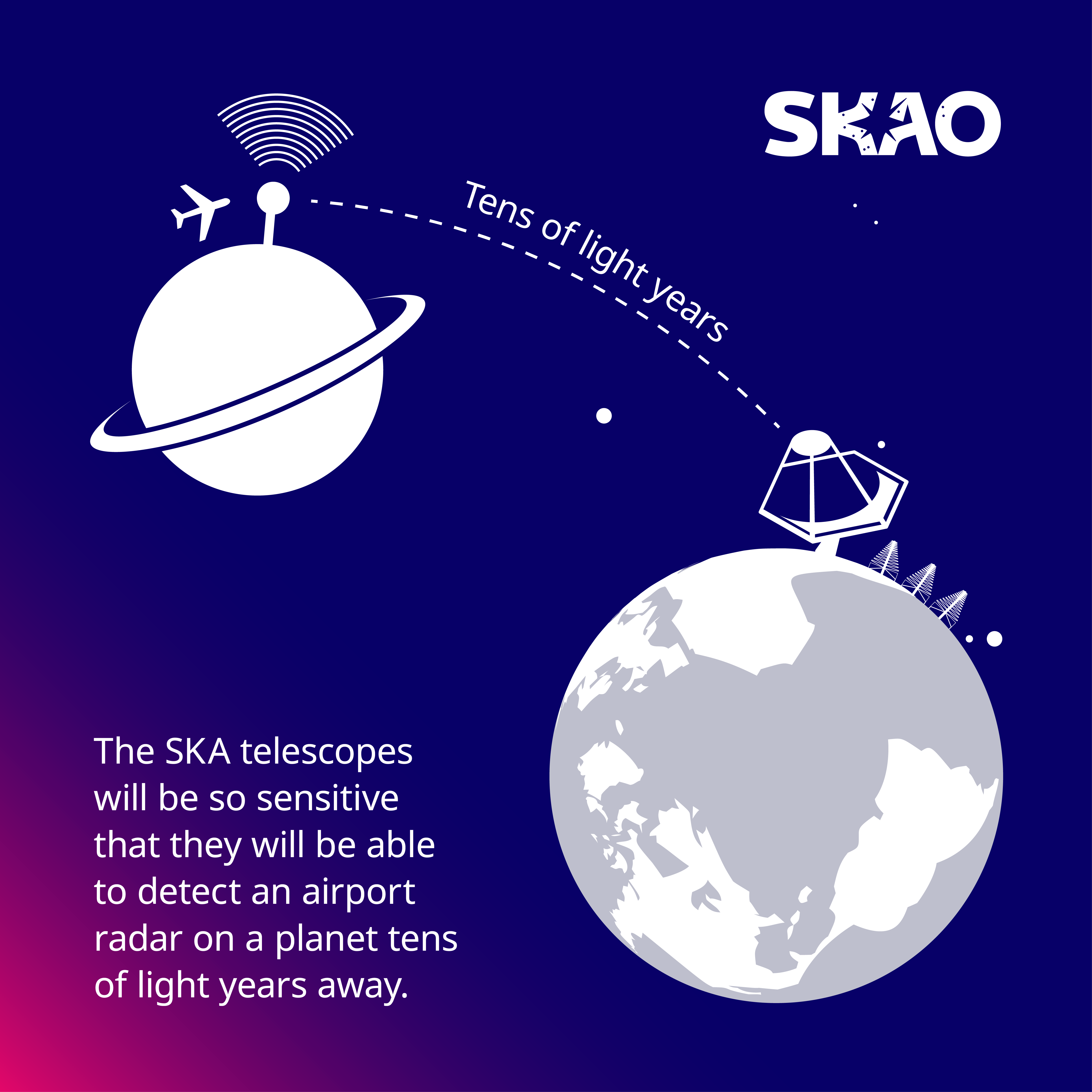

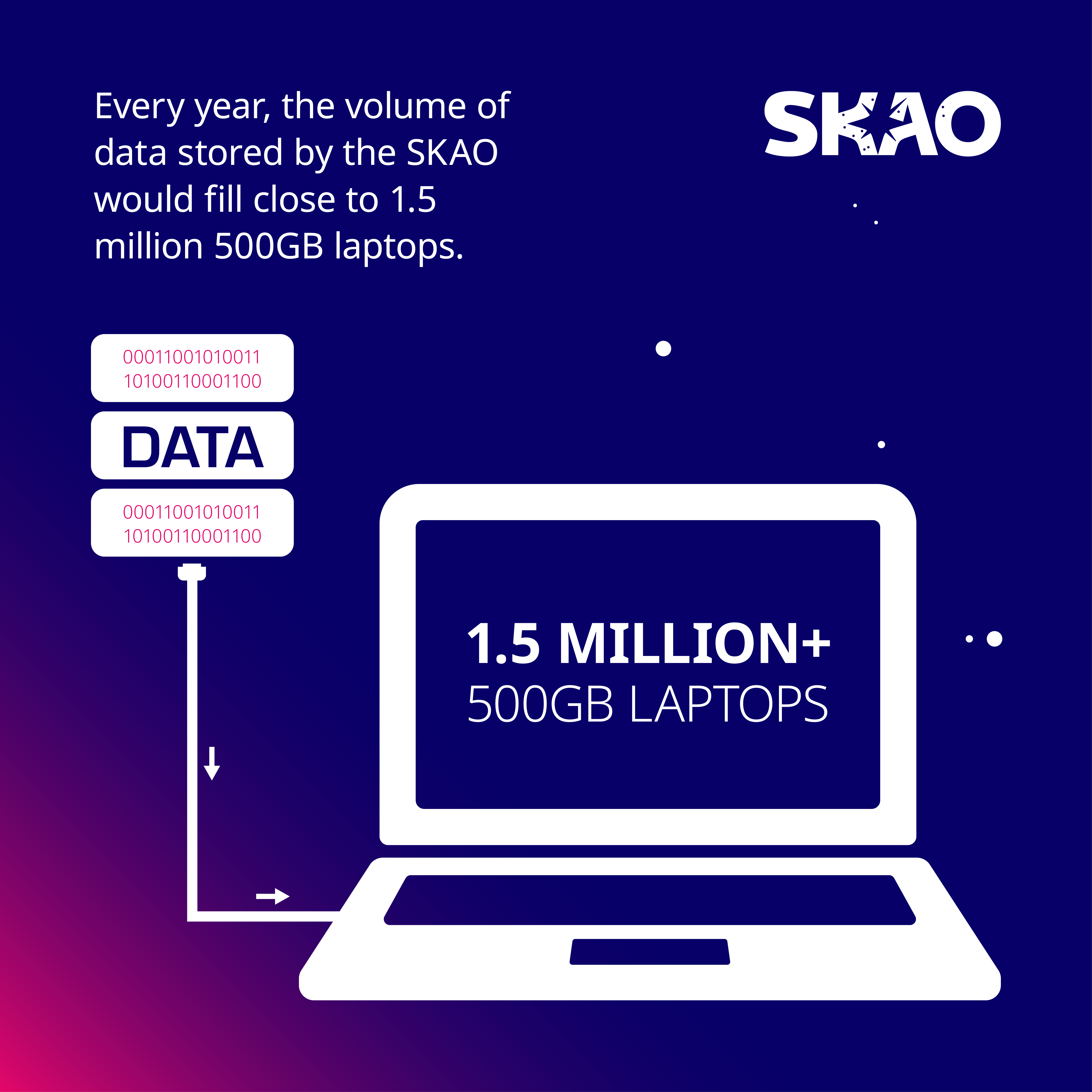

Some facts


Figure 8: 2023, Credit: SKAO

Plans

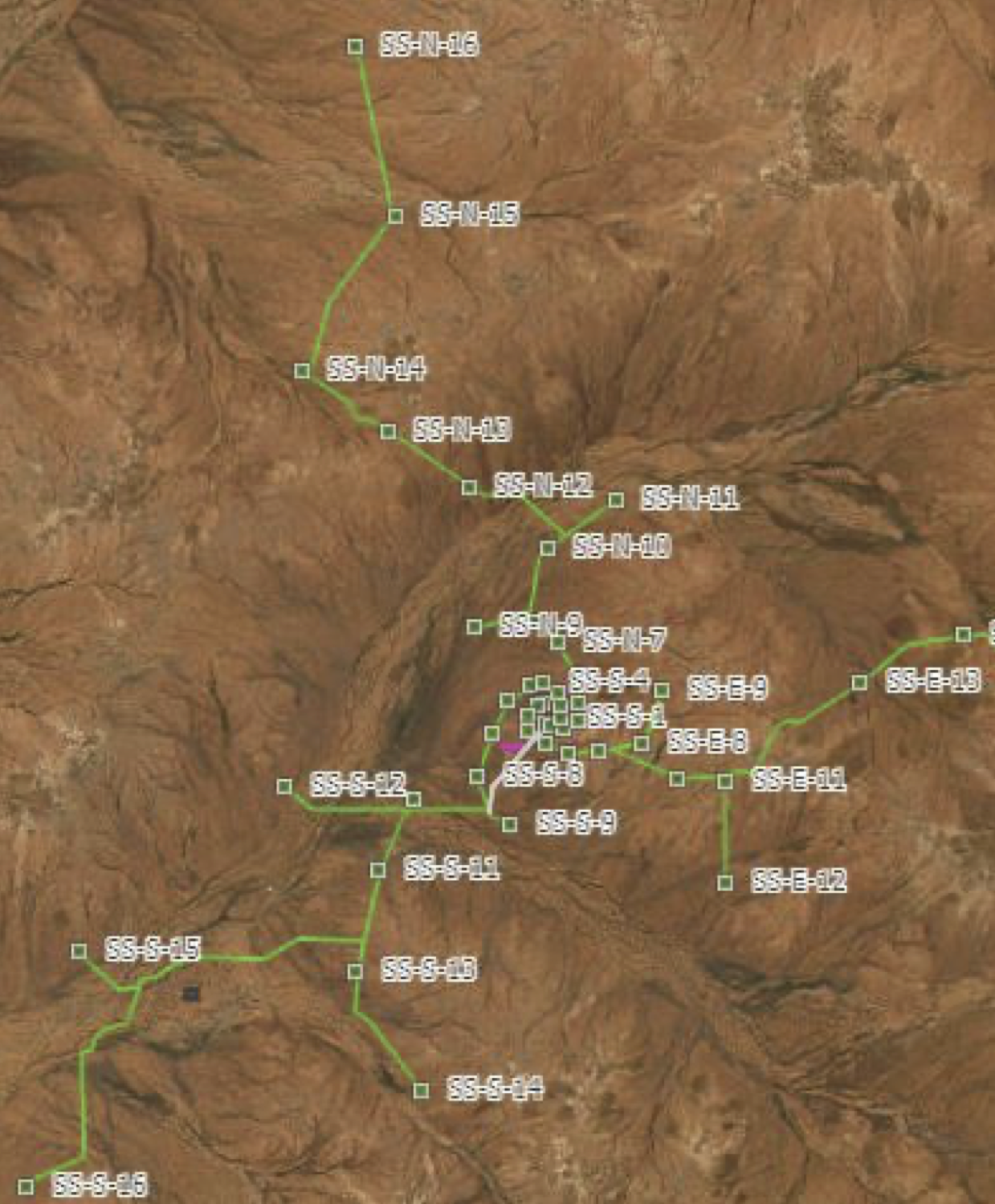

🇿🇦 Meerkat National Park (150km extent)

🇦🇺 Murchison Observatory (75km extent)

Indigenous communities

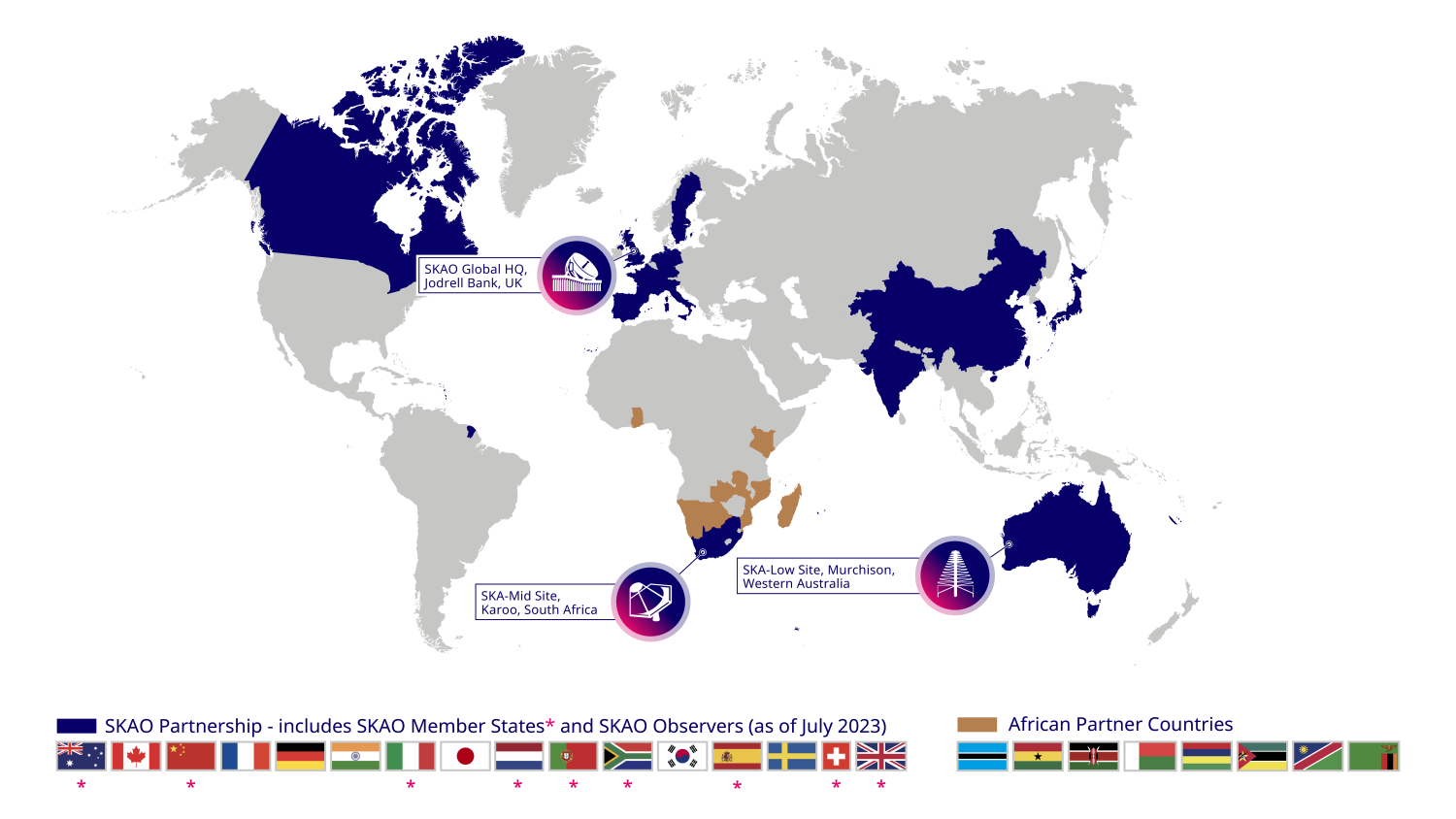

Member nations


Figure 9: 2023, Credit: SKAO

Switzerland joined in January 19 2022


Figure 10: celebrating at the WEF 2022, Credit: SKACH

SKA in Switzerland

  • leverage industry and technical partners
  • providing expertise in
    • the development of advanced receivers for dish antennas
    • precision timing and automation
    • signal processing
    • Big Data
  • contribute to the development of European SKA Regional Centre (SRC)

SKACH


Figure 11: Credit: SKACH

SKACH


Figure 12: Credit: SKACH

SKACH


Figure 13: Credit: SKACH

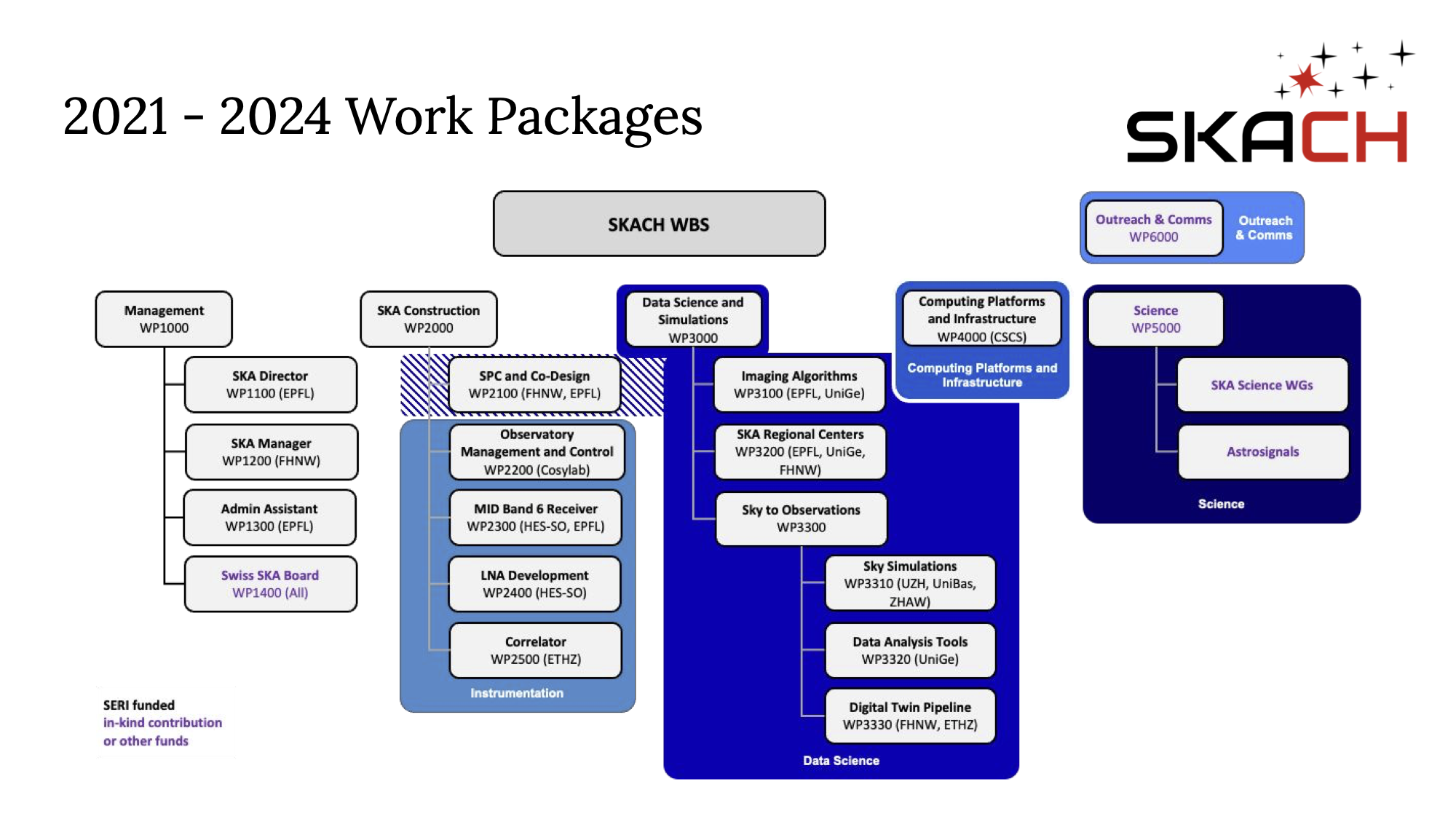

SKACH organization


Figure 14: Credit: SKACH

Deep learning sky simulations


Figure 15: Dataset of over 30'000 x 6 galaxy maps

Deep learning sky simulations

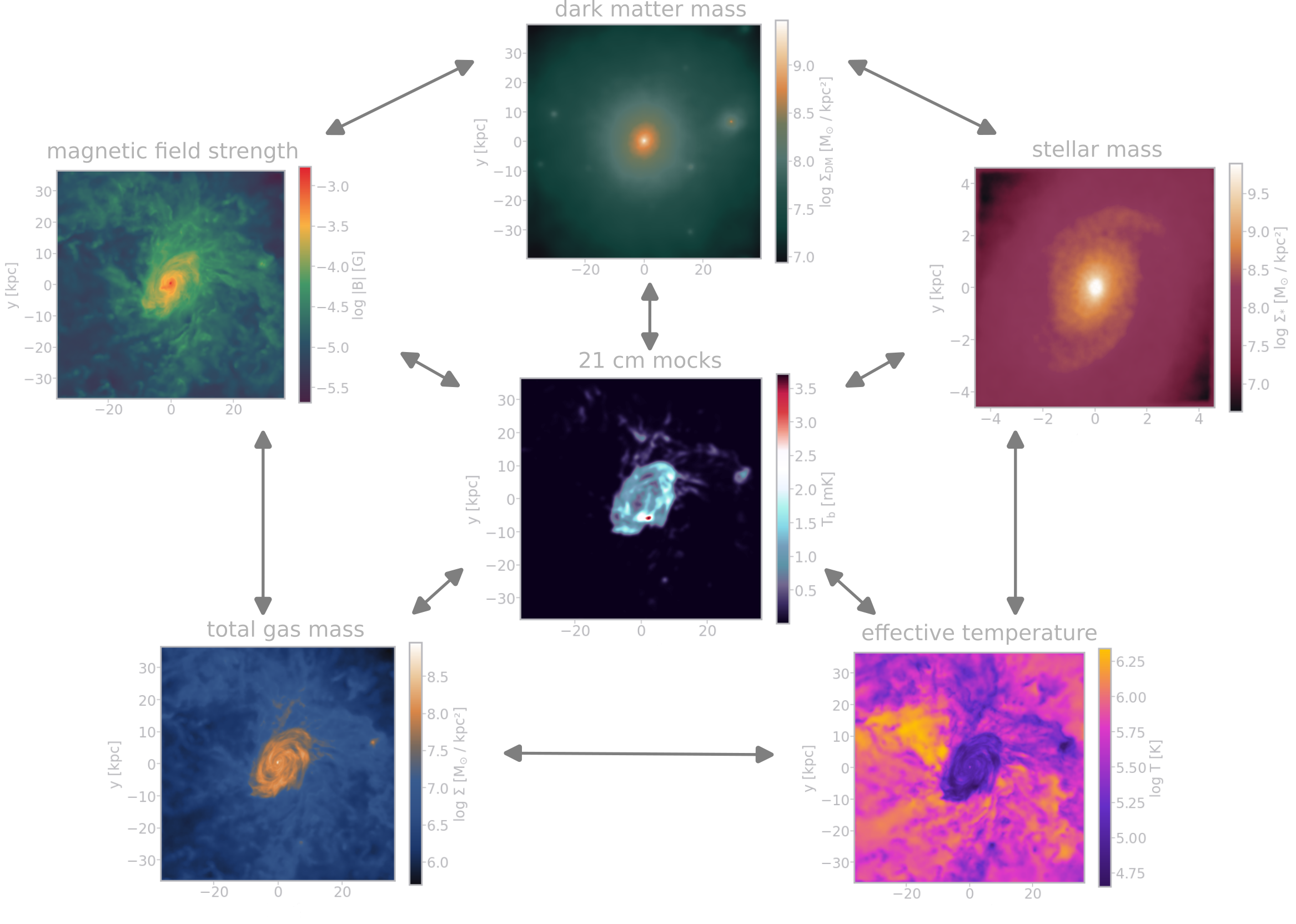

Figure 16: Use image domain translation models: observations (21cm) ↔ physical properties

cGANs (pix2pix or cycleGAN)

  • generator - discriminator pairs
  • learn the mapping from domain A   ⇿   B and vice versa

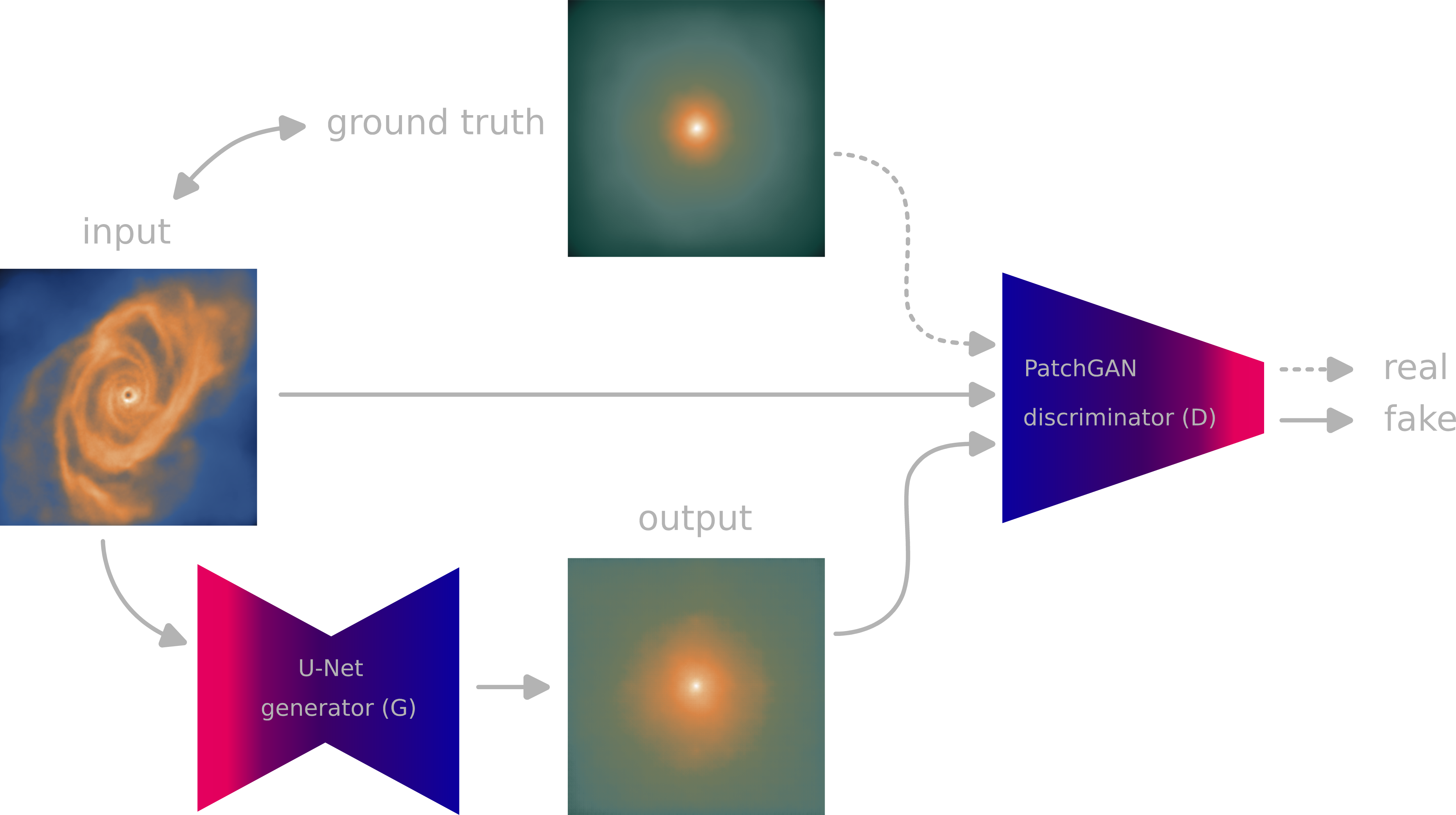

pix2pix schema


Figure 17: Use pix2pix to generate dark matter maps from mock observations

Preliminary results

Ground truth

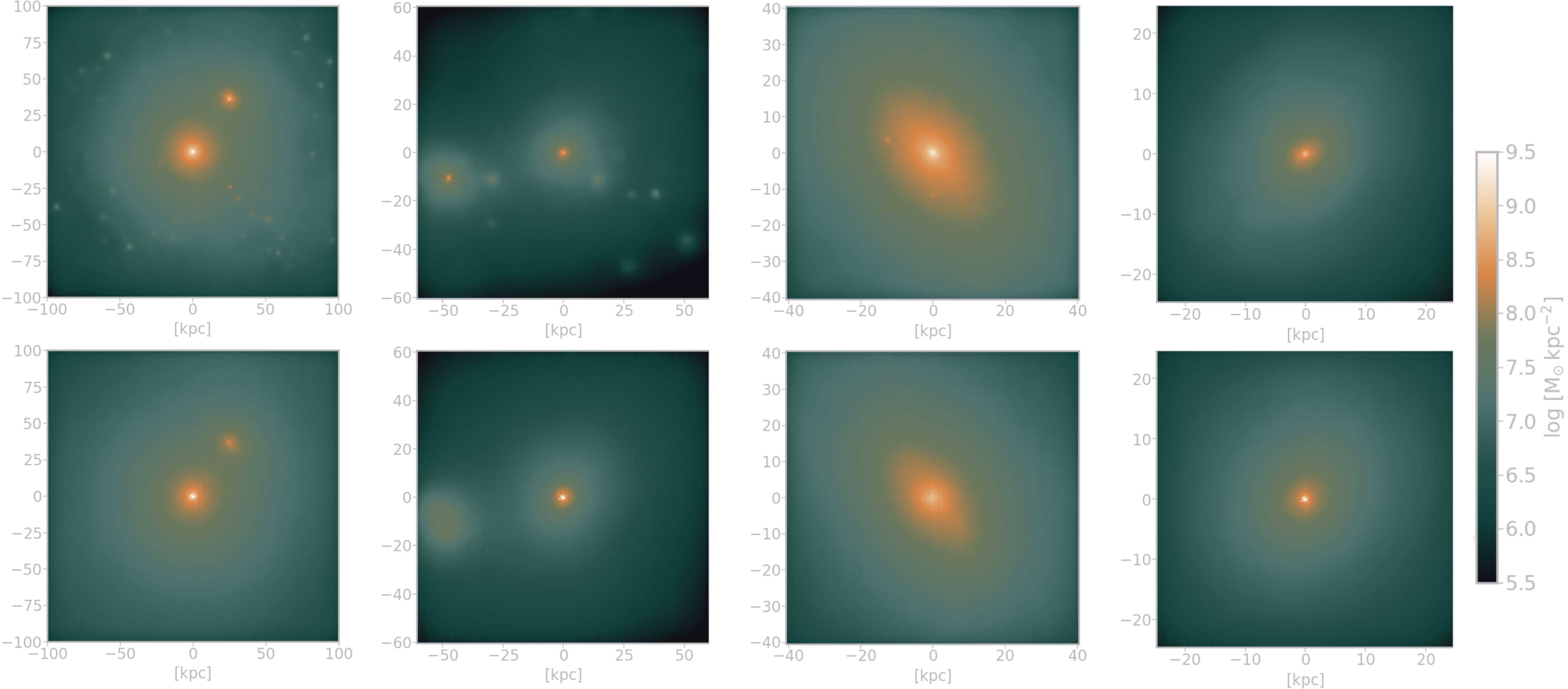

Predictions from pix2pix

Future plans

Score-based generative modeling

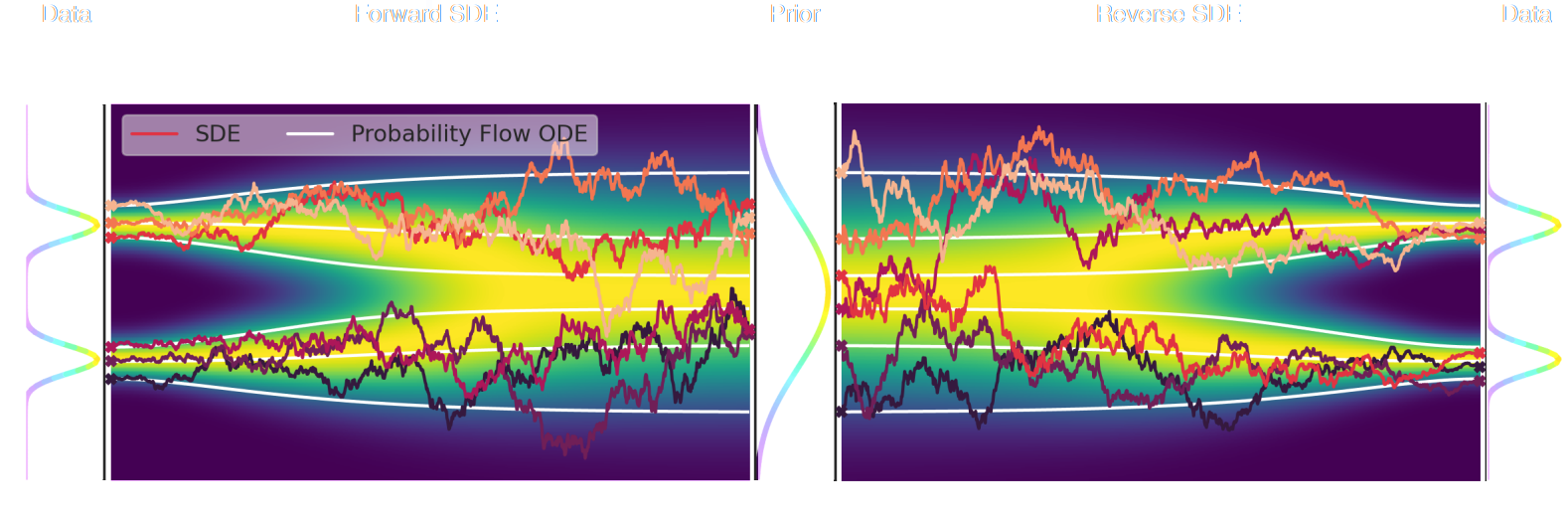

Figure 18: Score-based diffusion Song et al. (2021)

Uncertainty quantification by sampling from posterior

Credit: Ramzi et al. (2020)

Gravitational lensing

RAS PR 17/4, Credit: ESA/Hubble, NASA

  • Zurich lensed

Explanations are important


There's an app for that


Machine bias


People tend to anthropomorphize


Regulations are coming…

Certification of AI systems

  • Objectives:
    • Development of a certification scheme for AI systems with specific objectives and means of compliance
    • Suite of technical and scientific methods to verify relevant properties of the AI-based system as basis for the certification scheme
    • Establish an explicit link between objectives from regulations and technical methods
    • Combination of processes and algorithmic methods

Principle-based approach to Trustworthy AI

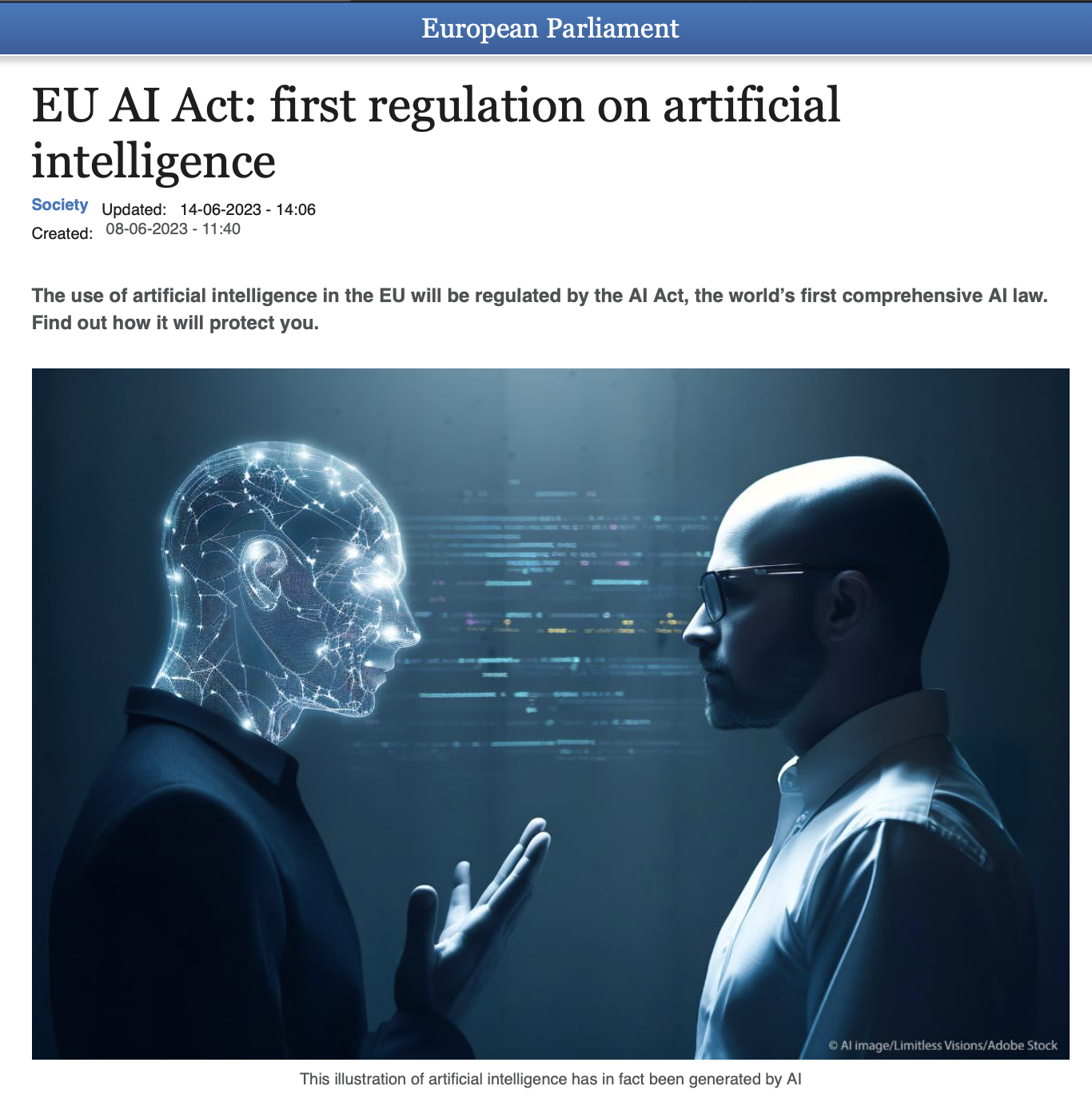

EU Artificial Intelligence Act

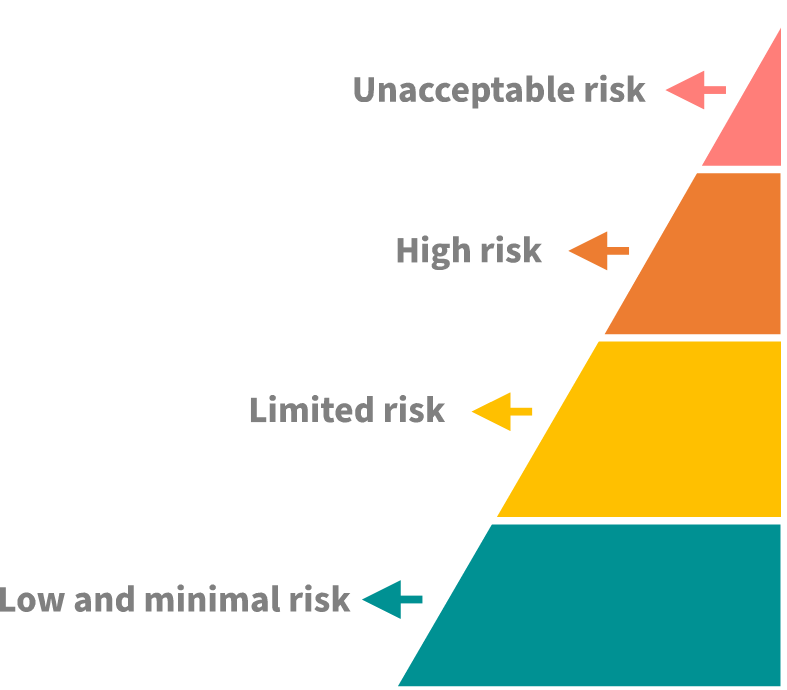

Risk-based approach

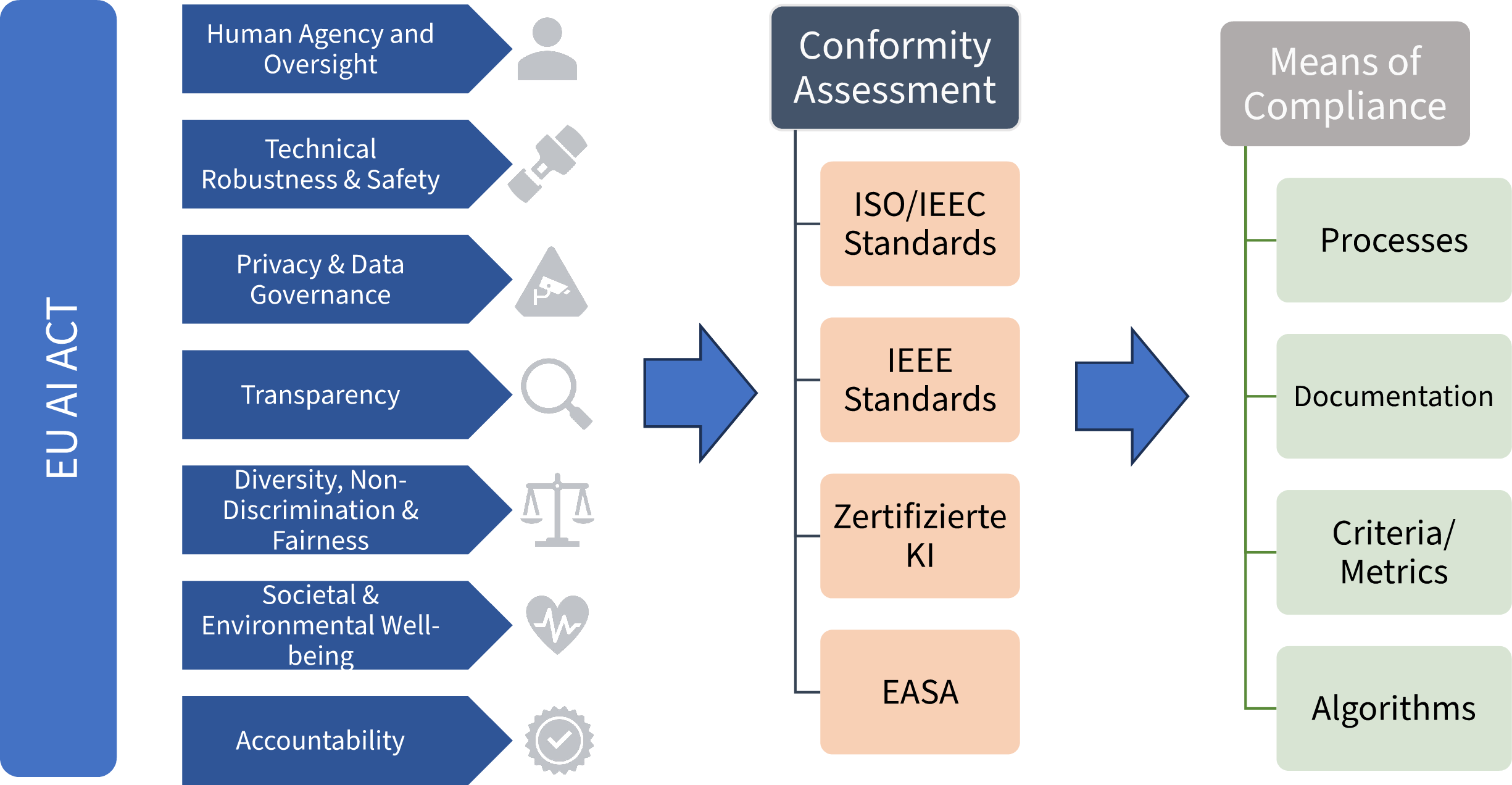

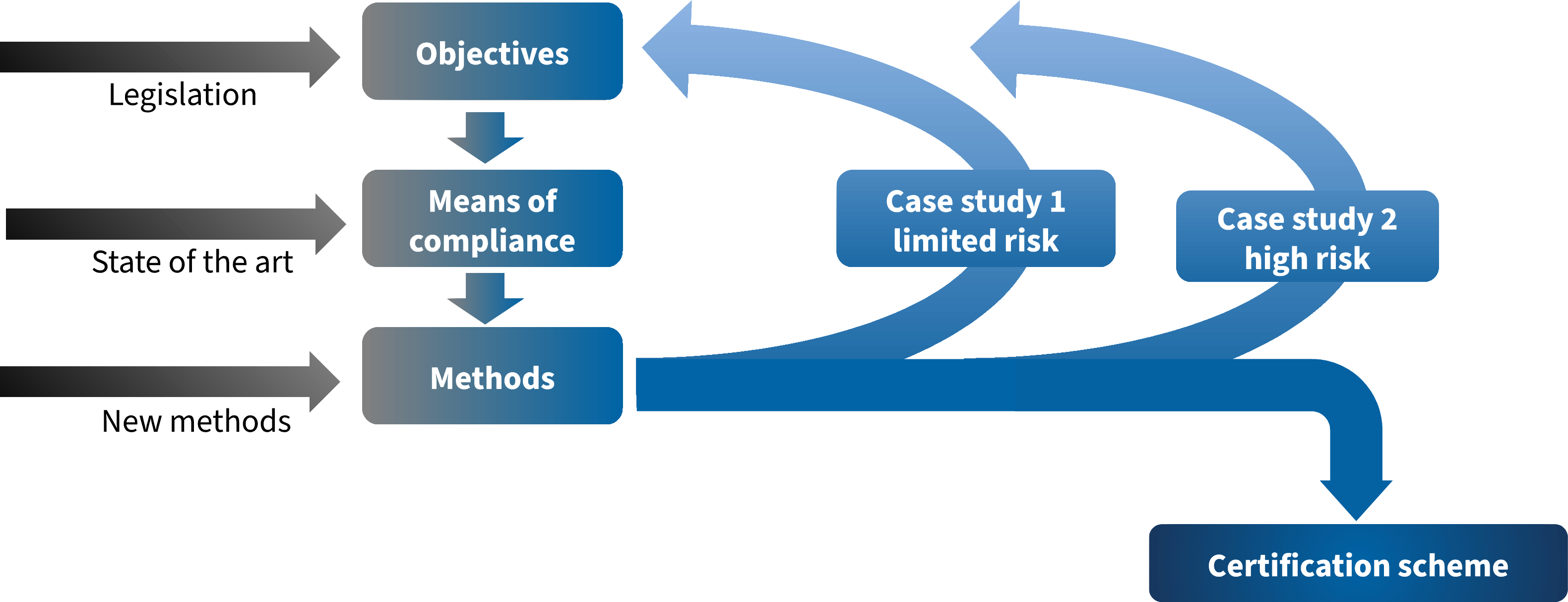

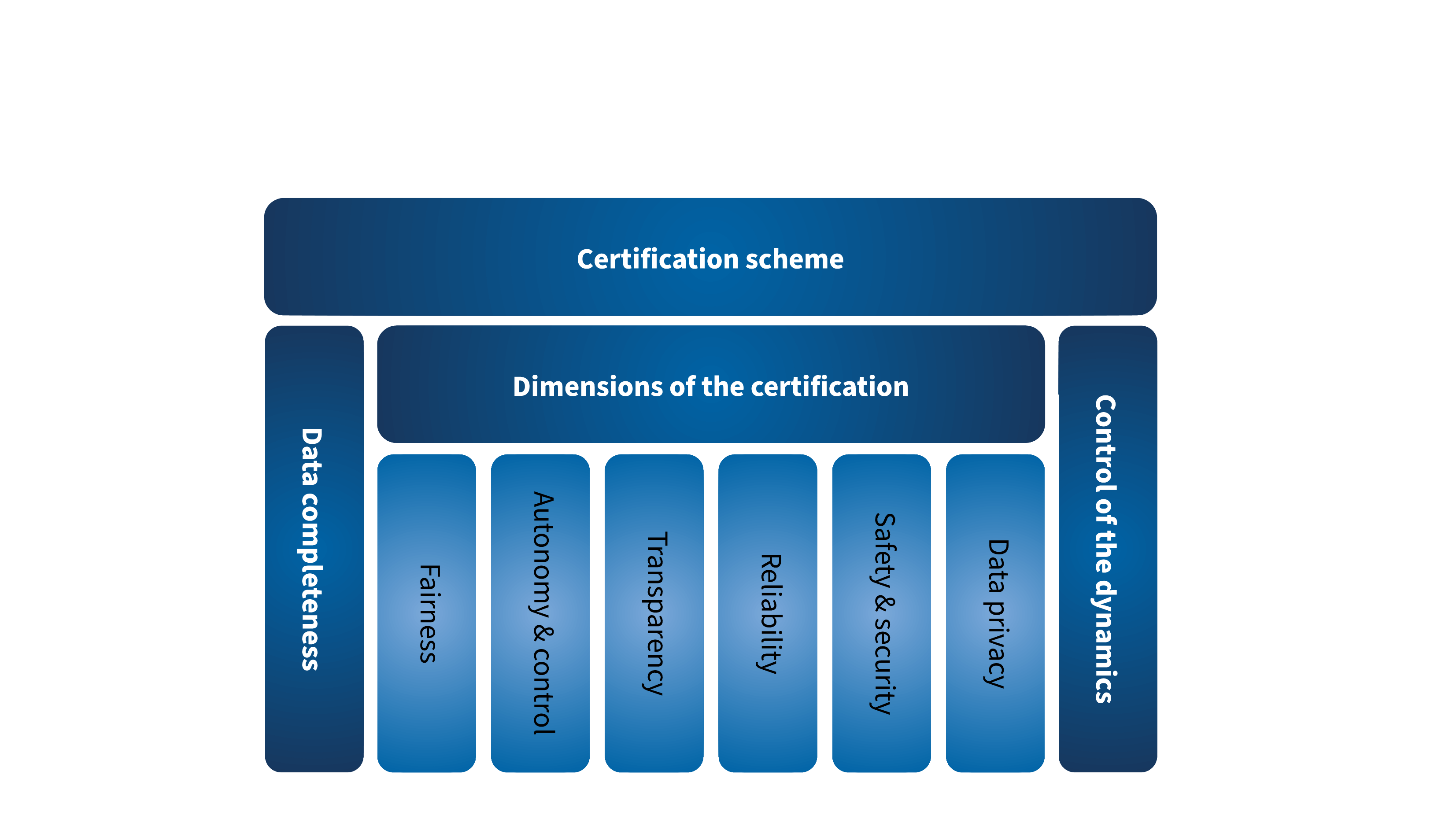

certAInty: a certification scheme for AI systems


certAInty: a certification scheme for AI systems


certAInty: a certification scheme for AI systems


certAInty: a certification scheme for AI systems

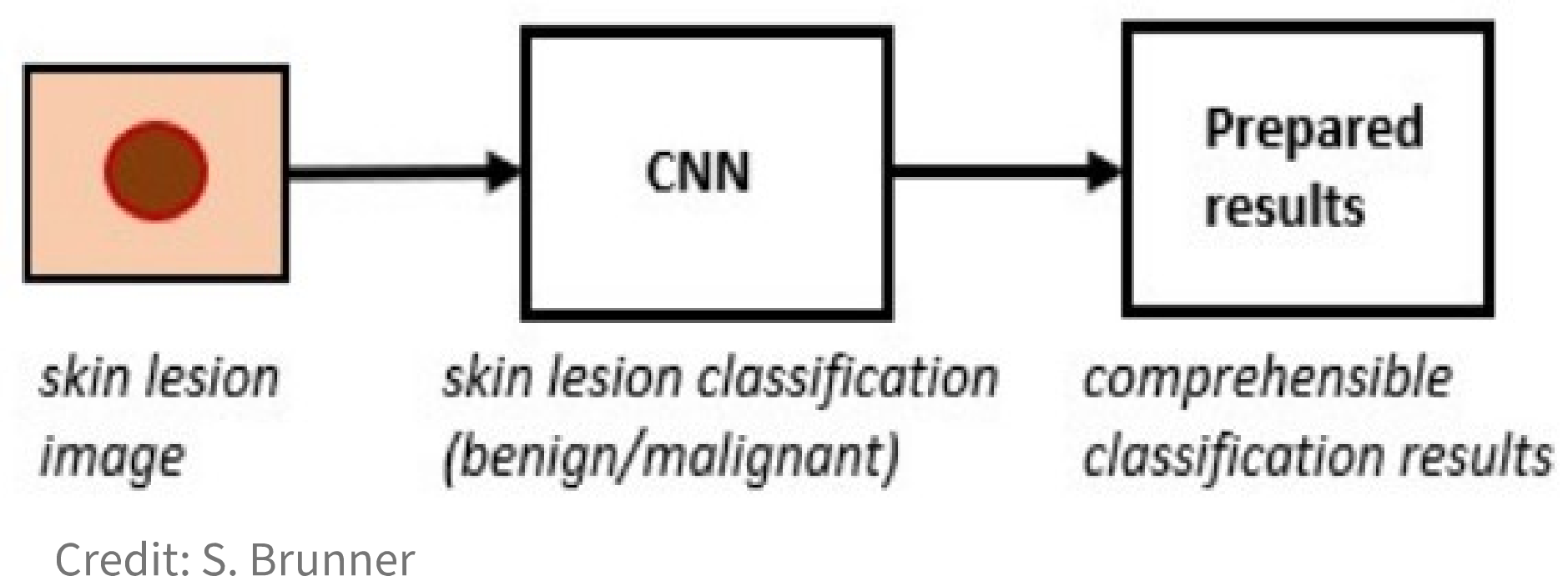

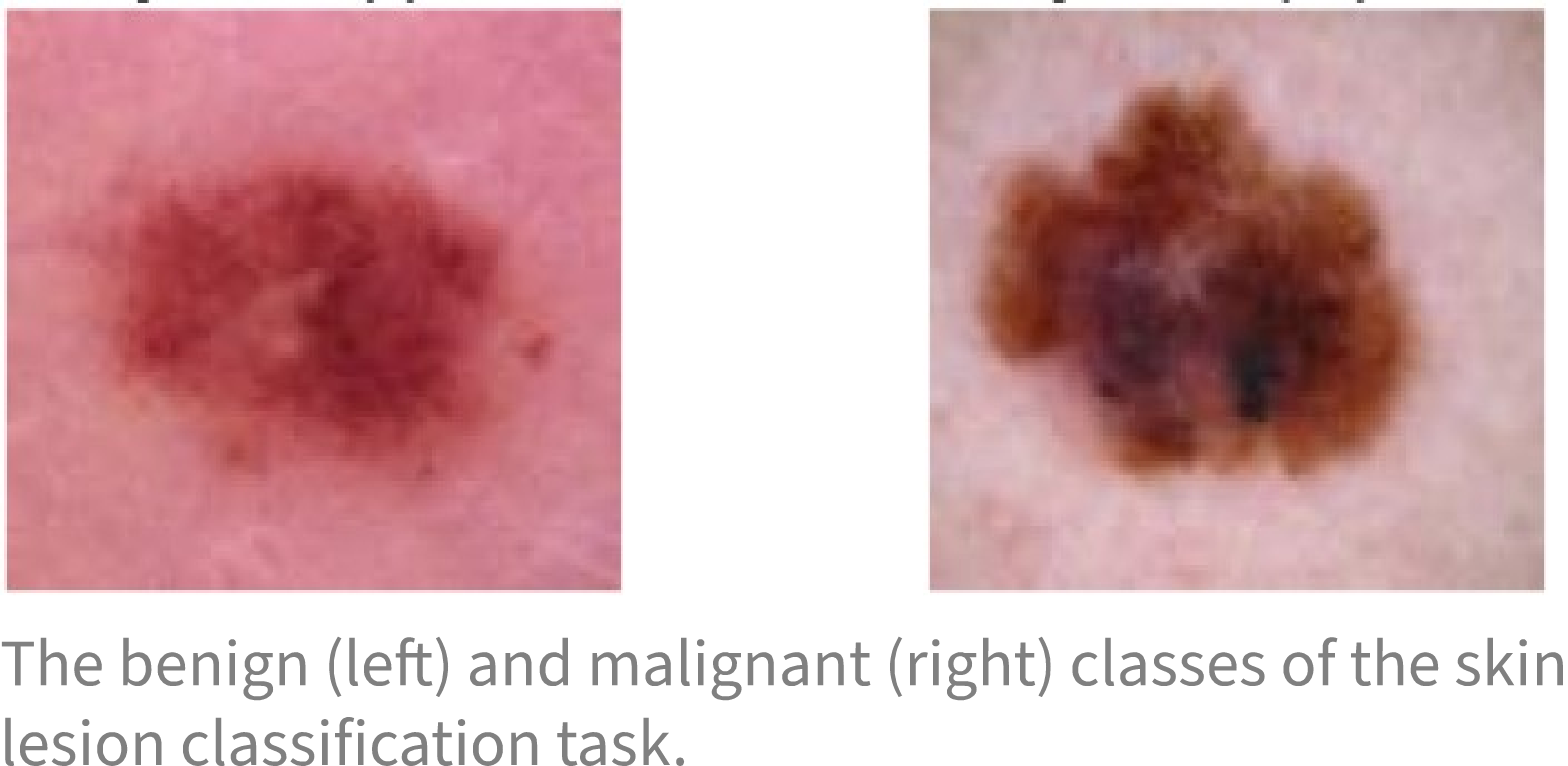

Use case: skin lesion classification



Use case: skin lesion classification

  • ISO 23894 Artificial intelligence - Guidance on Risk management (4) + EASA Concept paper (2.2.1):

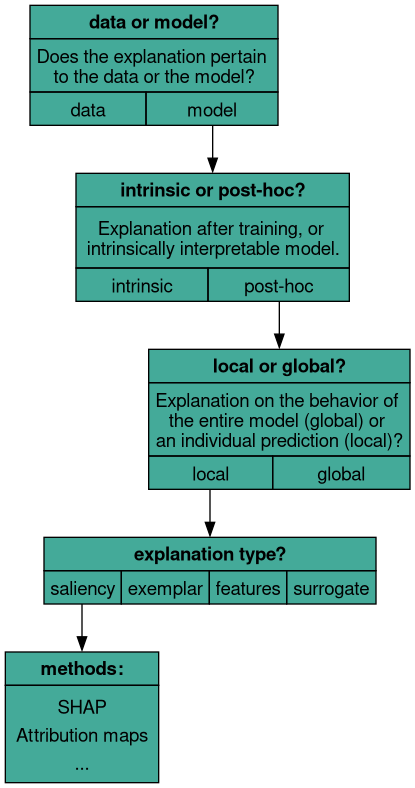

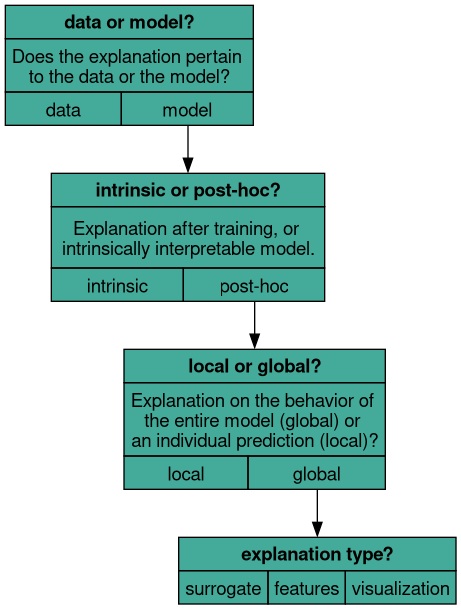

    • Identify stakeholders which in turn identify goals and means of increasing Transparency & Explainability
    • Doctor, patient, assessor, developer
  • ISO 24028:2020 WD Overview of trustworthiness in artificial intelligence (10.3.3):
    • The AI system should provide ex-ante and ex-post explanations, both means of explanations should be considered.
    • Local explanations of the AI system’s decision for doctor → patient, through communication of relevant image features in images
    • Global explanations for developer and assessor

Scenario: Physician


Scenario: Physician


Scenario: Physician


Scenario: Physician


Scenario: Physician

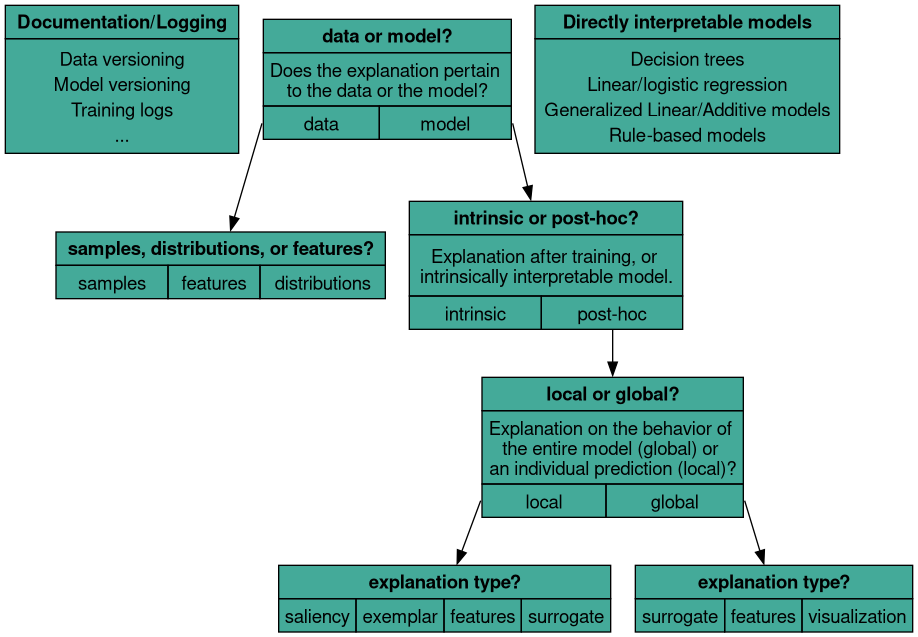

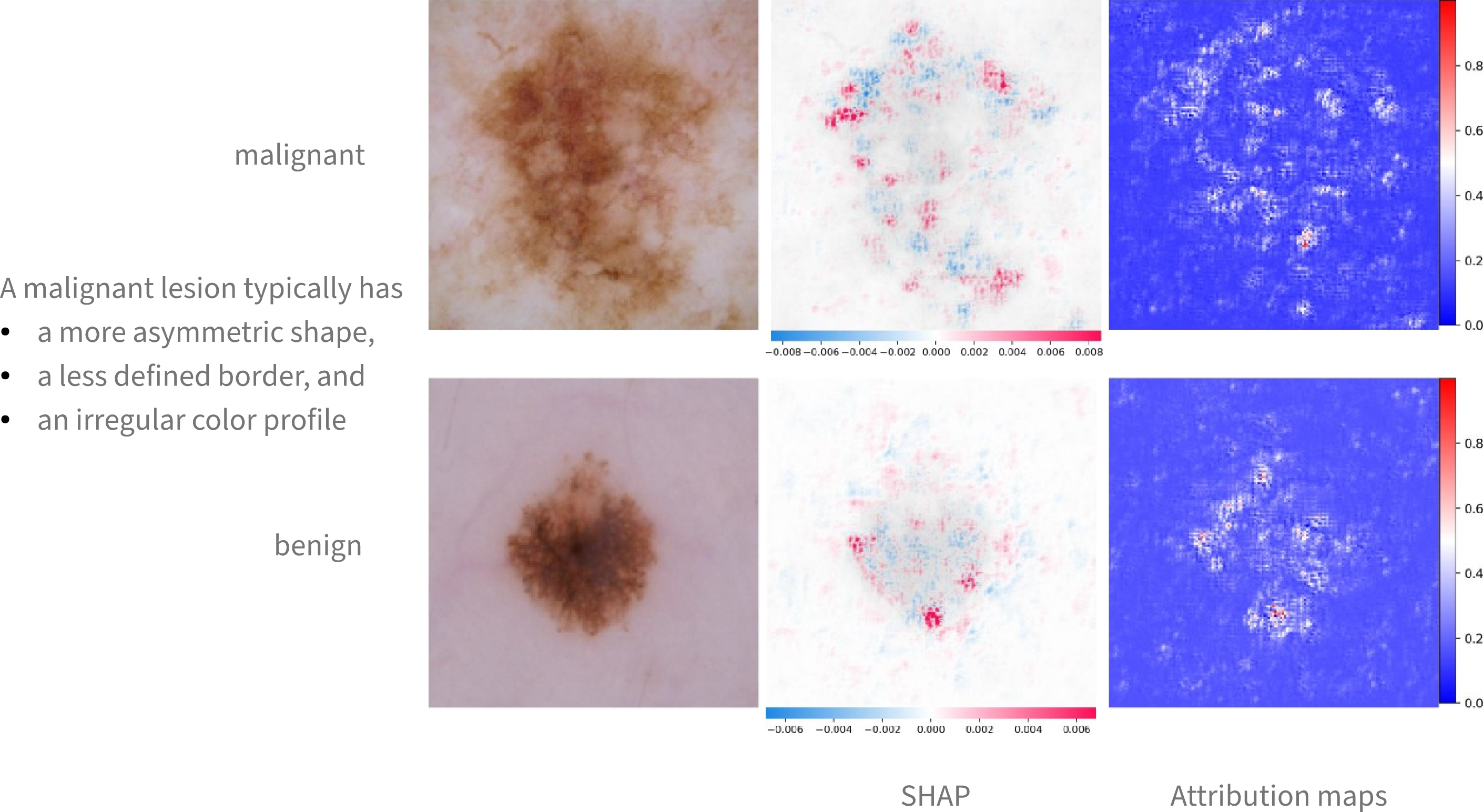

SHAP/Gradient-based methods


Scenario: Assessor


Scenario: Assessor

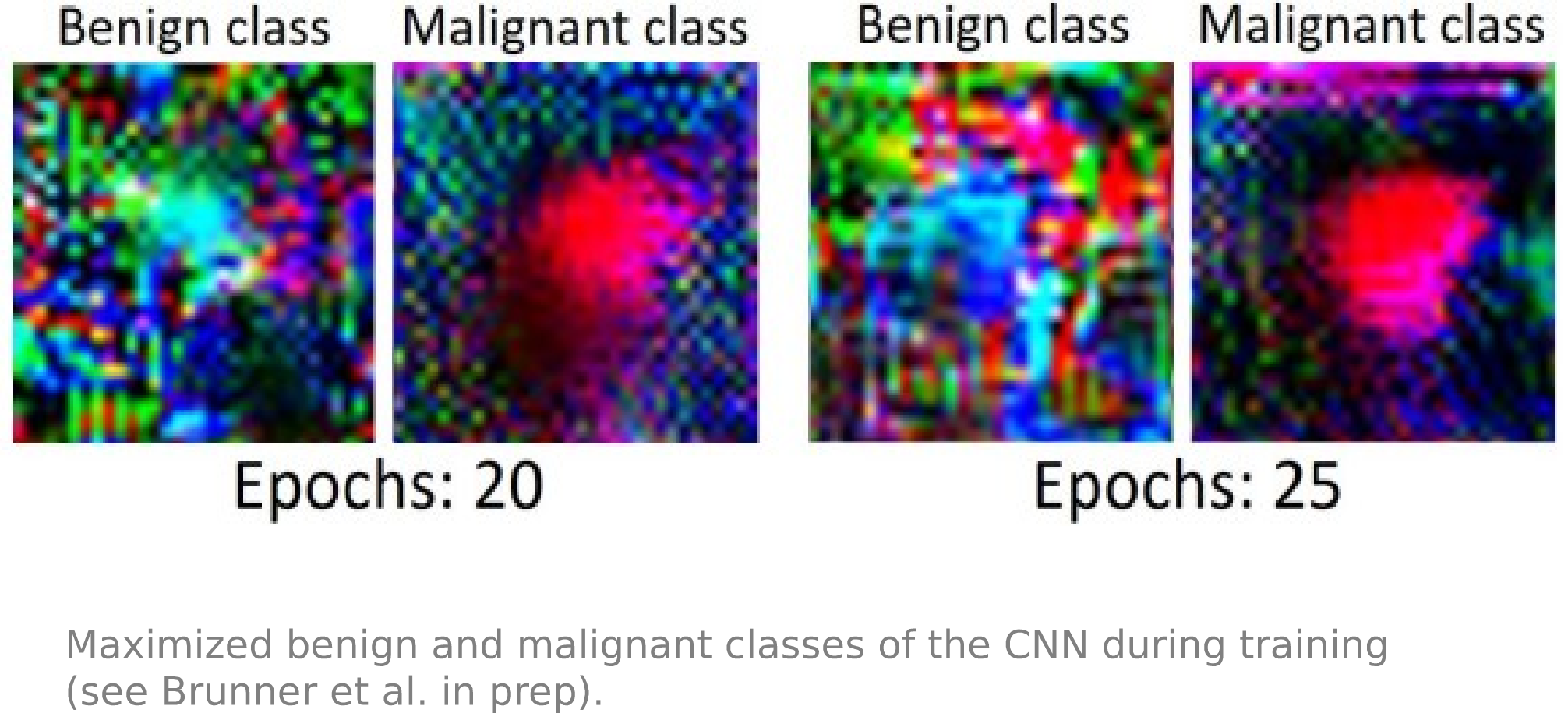

Class maximization


Take-home message

  • Assessment and certification of AI systems:
    • There is a gap between requirements and technical methods
    • Need for innovation in linking means of compliance to processes and algorithmic methods
    • Guidelines for developers and users
    • Benchmarking of technical methods on real-world data

Contact

https://phdenzel.github.io/

talk_qr.svg

Created by phdenzel.
